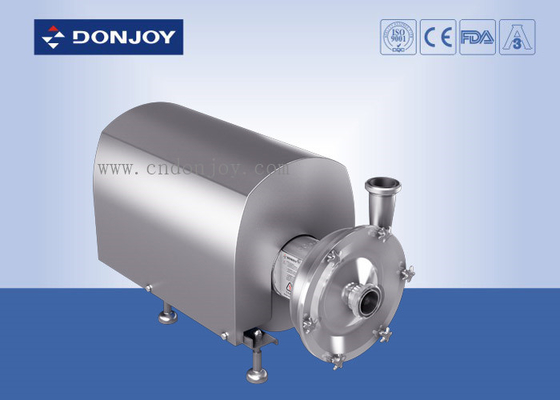

sanitary centrifugal high purity pump for comestic with open impeller
Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ
Characteristics
With the change of market demand and the development of technology, we hope to set up new
technical standards in the field of high clean pump, for this reason, we have made a series of
technology upgrades and optimization with the help of the Fluid science software analysis and
our more than 20 years experience in manufacturing and engineering application.
Donjoy DJ-LX series Centrifugal pump ,not only optimize the internal structure, such as
impeller design,dead angle treatment,machine seal pressure balance design and the
machine seal is completely in the flushing area ,but also optimize external sanitation of the
pump , which makes its internal absolute sanitation and external reduction of dead Angle.
Since there is no dead Angle area, it is easy to be cleaned by CIP and sterilized by SIP.
In addition, DJ - LX series pump, has kept the maximum flexibility of combined applications,
for example, the pump outlet angle can be arbitrarily adjusted from 0 ° to 135 °, the pump
cover adopts hand wheel nut, which keeps high efficiency in the maintenance of the pump and
replacement of machine seal, and reduces the highly professional requirements to maintenance
personnel without special tools. Therefore, the DJ-LX series centrifugal pump has achieved the
goal of high efficiency, health, high reliability and low cost, making it a high performance pump.
Specifications
|
Product Name:
|
Sanitary centrifugal high purity pump
|
|
Valve Body Material:
|
SS304 / SS316L / 1.4301 / 1.4404
|
|
Seal Material:
|
EPDM (Standard, FDA approval) FPM(Viton) and NBR
|
|
Max. Flow:
|
150 m3/h
|
|
Max. Speed:
|
3600 min - 1
|
|
Max. Head:
|
70H (m)
|
|
Max. Working Pressure:
|
7 bar / 99 PSI
|
|
Max. Working
Temperature:
|
120 °C
|
|
Motor:
|
ABB/domestic/SIEMENS
|
|
Motor Frequency:
|
50HZ, 60HZ
|
|
Surface treatment:
|
Inner polished and Sandblast outside
|
|
Available connection:
|
Tri-Clamp, Thread, Flange
|
|
Available standard:
|
DIN, SMS, 3A, RJT, ISO/IDF
|
|
Operated:
|
Electic
|
|
Low discharge option :
|
Low discharge / diaphragm valve / ball valve / butterfly valve
|
|
Certificate:
|
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
|
|
Application scope:
|
Dairy,food, beverage, pharmacy, cosmetic etc
|
|
Device
|
With trolley
|
|
Motor
|
Be covered
|
Technical Advantages:
Maintenance disassembly and installation can be completed without professional staff and special tools
Initial use of installation debugging, even if a short reverse rotation will not be damaged
The impeller and shaft are connected by the key groove, the impeller and the machine seal are
limited and fixed by the petalCompatible with single and double machine seal, only need to change machine seal.
Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Performance graph
LX Centrifugal pump comprehensive performance graph
