Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L

sanitary butterfly valve

stainless butterfly valves

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.CDF100Q2

Contact Us

Request A Quote
Product Details
Product Name:
Butterfly Valve
Materials:
304 / 316L
Size:
DN10 - DN300, 1/2" - 12"
Operation:
Pneumatic
Connection:
Welded
Feature:
With Aluminum Actuator
Structure:
Butterfly
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box or wooden box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Product Description

Sanitary Pneumatic Butterfly Valves 10" With Double acting Aluminum Actuator Stainless Steel 304 316L



Specifications

Product Name:

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available  size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp/welding/thread/flange/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Pneumatic

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Bubble pack for each valve. Outside packing are carton or

plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.

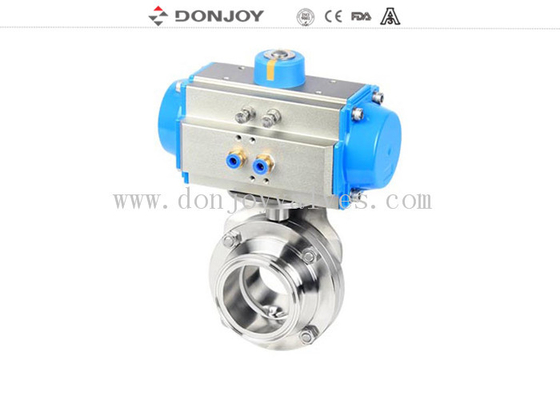

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 0

Data

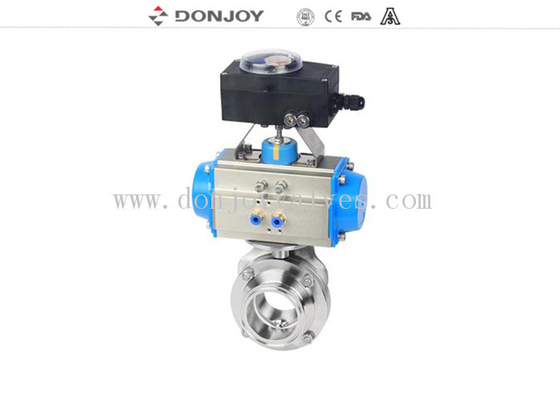

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 1

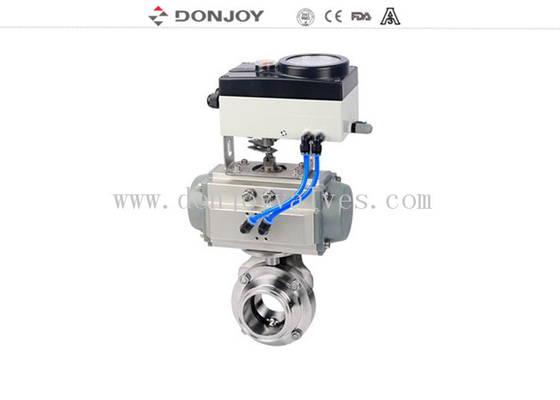

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 2

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 3



Pneumatic actuator date

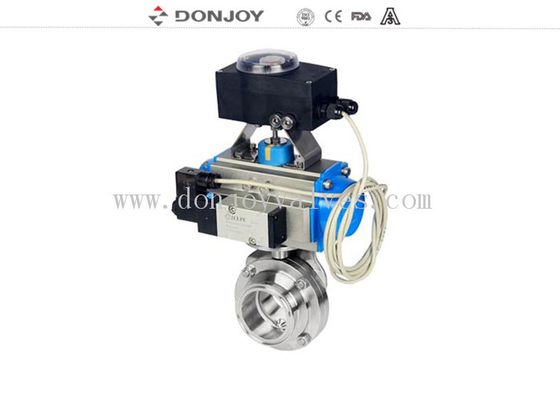

Sanitary 10" Pneumatic Butterfly Valves With Double acting Aluminum Actuator Stainless Steel 304 316L 4

                                  Double-acting pneumatic actuator Torque Table
Size Torque(N.M) Recommend valve size
Butterfly valve Ball valve 3 way ball valve Industrial valve
DJ052 21

DN10-DN50,

0.5"-2"

DN10-DN32,

0.5"-1.25"

N/M N/M
DJ063 37

DN65-DN80,

2.5"-3.5"

DN40-DN50,

1.5"-2"

DN25-DN32,

1"-1.25"

DN25,1"
DJ075 59 DN100,4" 2.5"

DN40-DN50,

1.5"-2"

DN32-DN40,

1.25"-1.5"

DJ083 74

DN125-DN150,

5"-6"

DN65,3" DN65,2.5" DN50,2"
DJ092 114 DN200,8" DN80 3" DN65,2.5"
DJ105 170

DN250-DN300,

10"-12"

DN100,4" DN80 DN80,3"
DJ125 292 N/M DN125,5" DN100,4" DN100,4"
DJ140 439 N/M DN150,6" N/M DN150,6"
DJ160 669 N/M DN200,8" N/M DN200,8"



                          Single acting pneumatic actuator Torque Table
Size Torque(N.M) Recommend valve size
Butterfly valve Ball valve 3 way ball valve Industrial valve
DJ052-S 12.5-8.5

DN10-DN32,

0.5"-1.25"

DN10-DN15,

0.5"-0.75"

N/M

DN10-DN15,

0.5"-0.75"

DJ063-S 21.2-13.7

DN40-DN50,

1.5"-2"

DN25,1"



DN25,1" DN25,1"
DJ075-S 292.2-21.2 DN65,2.5"-3" DN32,1.25"

DN32,1.25"



DN32-1.25"
DJ083-S 46.5-31.6 DN80,3.5" DN401.5" DN40,1.5" DN40,1.5"
DJ092-S 69.3-46.7 DN100,4" DN50,2" DN50,2" DN50,2"
DJ105-S 99-63

DN200-DN250



DN65,2.5" N/M DN65,2.5"
DJ125-S 159-105 N/M DN80,3" DN80,3" N/M
DJ140-S 260-172 N/M DN100,4" DN100,4" DN80,3"
DJ160-S 422-279 N/M N/M N/M DN100,4"



Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;


Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.
