| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | LX |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-30 working days |
| Payment Terms: | T/T, LC, Credit Card |
| Supply Ability: | 15 set 30 working days |
| Item: | SS Centrifugal Pump | Operation: | ABB Motor |
|---|---|---|---|
| Mechanical: | Single Seal | Inlet: | 2" Thread |
| Outlet: | 2" Thread | Medium: | Fluid |
| High Light: | 150m3/H Multistage Centrifugal Pump,2" Thread Multistage Centrifugal Pump,150m3/H centrifugal water pump |
||

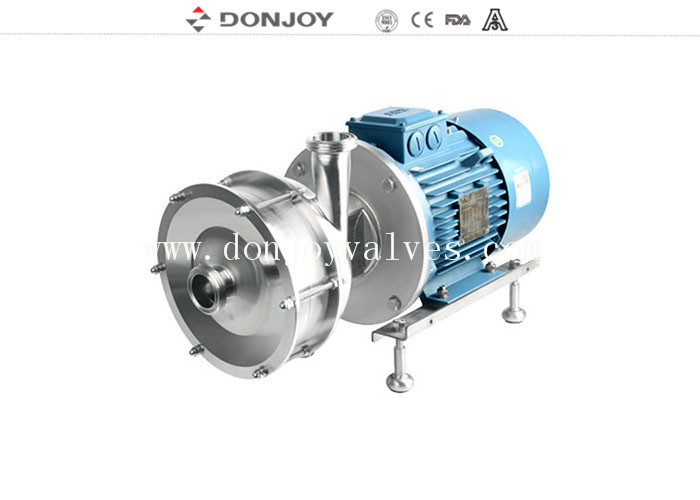

Multi Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor
Description
Options
1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ
Characteristics
With the change of market demand and the development of technology, we hope to set up new technical standards in the field of high clean pump, for this reason, we have made a series of technology upgrades and optimization with the help of the Fluid science software analysis and our more than 20 years experience in manufacturing and engineering application.
Donjoy DJ-LX series Centrifugal pump ,not only optimize the internal structure, such as impeller design,dead angle treatment,machine seal pressure balance design and the machine seal is completely in the flushing area ,but also optimize external sanitation of the pump , which makes its internal absolute sanitation and external reduction of dead Angle.
Since there is no dead Angle area, it is easy to be cleaned by CIP and sterilized by SIP. In addition, DJ - LX series pump, has kept the maximum flexibility of combined applications,for example, the pump outlet angle can be arbitrarily adjusted from 0 ° to 135 °, the pump
cover adopts hand wheel nut, which keeps high efficiency in the maintenance of the pump and replacement of machine seal, and reduces the highly professional requirements to maintenance
personnel without special tools. Therefore, the DJ-LX series centrifugal pump has achieved the goal of high efficiency, health, high reliability and low cost, making it a high performance pump.
Specifications
|
Product Name: |
mini stainless steel centrifugal High Purity Pumps for pharmaceutical |
|
Valve Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM (Viton) and NBR |
|
Max. Flow: |
150 m3/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
70H (m) |
|
Max. Working Pressure: |
7 bar / 99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC/Sic/EPDM(Standard), C/SIC, TC/TC |
|
Sealing type: |
Flushed double mechanical seal / single mechanical seal(standard) |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw |
|
Voltage: |
110V, 220V, 380V |
|
Motor: |
ABB / domestic / SIEMENS |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Application structure: |
LX |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Eclectic |
|
Low discharge option |
Low discharge/diaphragm valve/ball valve/butterfly valve |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Technical Advantages:

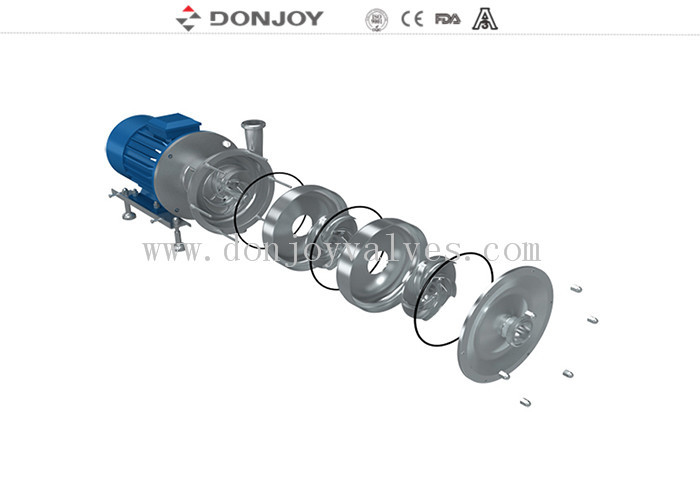

1.Maintenance disassembly and installation can be completed without professional staff and special tools
2.Initial use of installation debugging, even if a short reverse rotation will not be damaged
3.The impeller and shaft are connected by the key groove, the impeller and the machine seal are limited and fixed by the petal
4.Compatible with single and double machine seal, only need to change machine seal.
Applications

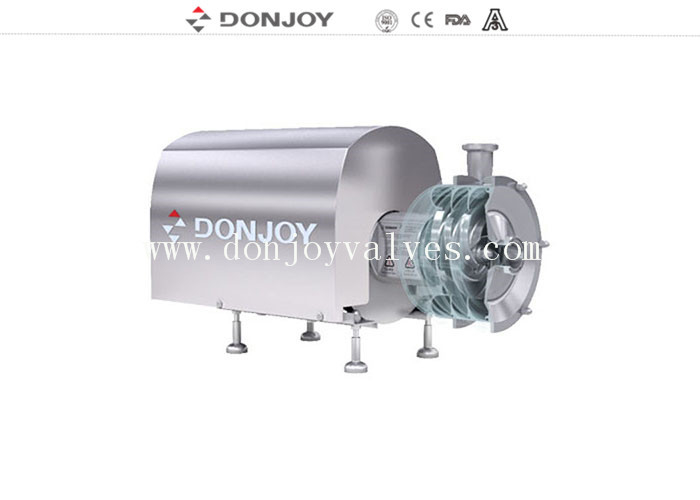

1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.
Packaging Details
Plywood case or customerized. Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Size and Installation
There are various kinds of model of centrifugal pump, please check the form below for detailed information.
