Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
KLX
Contact Us

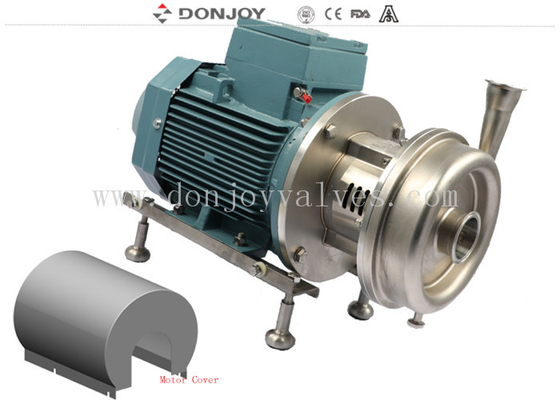

20T/40M Sanitary open impeller Centrifugal pump with Explosion-proof motors for alcohol
Solution for high efficiency, low noise, simple and econonical maintenance, high puirty
KLX Series centrifugal pump is upgraded from KS centrifugal pump, not only optimize the internal structure, such as impeller design, dead angle treatment, machine seal pressure balance design and the machine seal is completely in the flushing area.
Description
Options 20T 40M Open Impeller Alcohol Sanitary Centrifugal Pump
1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM ( Double or Single Seal )
2. Gasket: viton / NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ
5.Certificate: CE, 3A, FDA...
Specifications
Product Name: | High purity Centrifugal pump |
Valve Body Material: | SS304 / SS316L / 1.4301 / 1.4404 |
Seal Material: | EPDM (Standard, FDA approval) FPM (Viton) and NBR |
Max. Flow: | 150 m³/h |
Max. Speed: | 3600 min-1 |
Max. Head: | 70H(m) |
Max. Working Pressure: | 7 bar/99 PSI |
Max. Working |
120 °C |
Motor: | ABB / domestic / SIEMENS |
Motor Frequency: | 50HZ, 60HZ |
Surface treatment: | Inner polished and Sandblast outside |
Application structure: | KS/BS |
Availably connection: | Tri-Clamp, Thread, Flange |
Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
Operated: | Electic |
Low discharge option : | Low discharge / diaphragm valve / ball valve / butterfly valve |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
Rotors: | Opening |
Level: | Sanitary grade |
Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.
Technical Advantages:
1. Maintenance disassembly and installation can be completed without professional staff and special tools
2.Initial use of installation debugging, even if a short reverse rotation will not be damaged.
3.Impeller and shaft are connected by keyway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special shaped flange
4. Sompatible with single and double mechanie seal, only need to change machanical seal
Impeller Disassmebly
KLX Series centrifugal pump various configuration
Selection Table of KLX centrifugal pump
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Packaging Details
Plywood case or customerized. Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Size and Installation
There are various kinds of model of centrifugal pump, please check the form below for detailed information.
