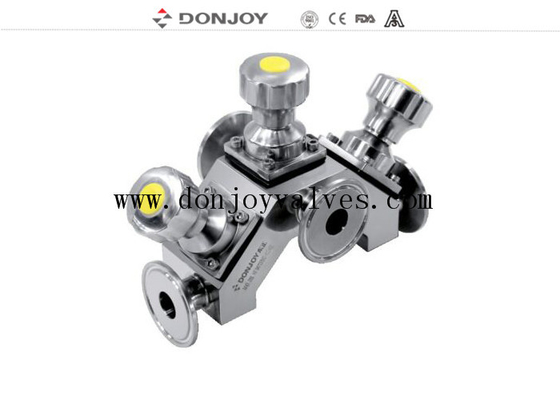

SS316L Multiport Manual Diaphragm Valves For Pure Water

SS316L Multiport Manual Diaphragm Valves For Pure Water

    • small.img.alt
    • small.img.alt
  • large.img.alt

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: M43 Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: Multiport Diaphragm Valve Operation: Manually
    Connection: Tri Clamp Structure: With Hand Wheel
    Function: Flow Control Material Of Handwheel: Could Be Optional
    Size: 1/2"-3/4"
    High Light:

    Multiport Manual Diaphragm Valves

    ,

    SS316L Manual Diaphragm Valves

    ,

    Pure Water Manual Diaphragm Valves

    stainless steel 316L Multiport M43 Type manual diaphragm valves for pure water

    M43 Type:  3 VALVE, 4 Port



    Specifications

    Product Name:

    Multiport Diaphragm Valves

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces

    PTFE+EPDM

    Max Working Pressure:

    8 Bar

    Max.WorkingTemperature:

    150 degree C

    Available  size:

    1/4”-3/4”, DN6-DN15

    Available connection:

    Clamp/weld/thread/special connection

    Available standard:

    3A/BPE/DIN/ISO/IDF

    Operated:

    Manual,Pneumatic,Controller

    Available structure:

    Straight, tee, U-type, L type, GMP structure, SAP stucture

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO90001

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc,Water

    Feature:

    Precise controlling on fluid

    Structure:

    Multi - combination

    s



    Description
    Various configuration of Diaphragm valve
    1. Didaphragm valve with Pisitioner / Process Controller(IL-TOP)
    2. Diaphragm valve with Control Unit(C-Top)
    3. Valve position Regulator
    4. Position Sensor Module
    5. Plastic Handle
    6. Stainless steel handle
    7. Stianless steel acutor
    8. Electric Diaphragm valve
    9. Plastic Acutor
    10. Body: Casting / Forging



    Applications:

    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.

    The valve is excellent for flow control as well as open/close control.

    The diaphragm valves are better in feature of flow in comparison with other valves. It is eaiser to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control.

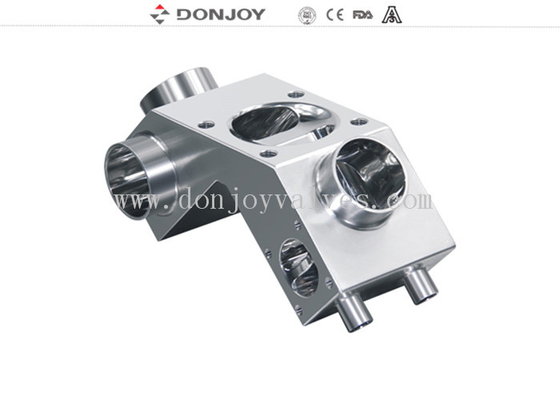

    Valve body construction:

    SS316L Multiport Manual Diaphragm Valves For Pure Water 0


    Drawing

    SS316L Multiport Manual Diaphragm Valves For Pure Water 1
