| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | SLX |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Materials: | SS304 / SS316L | Motor: | IP69 Stinaless Steel Motor |
|---|---|---|---|
| Mechanical: | Single / Double Seal | Connection Way: | Thread, Clamp, Flange, Welding, Union |
| Power: | 380V/ 50HZ, 440V/60HZ | Medium: | Beer / Drug / Beverage Etc. |
| High Light: | IP69 Stainless Steel Centrifugal Pump,Ethanol Stainless Steel Centrifugal Pump,Single Seal SS Centrifugal Pump |
||

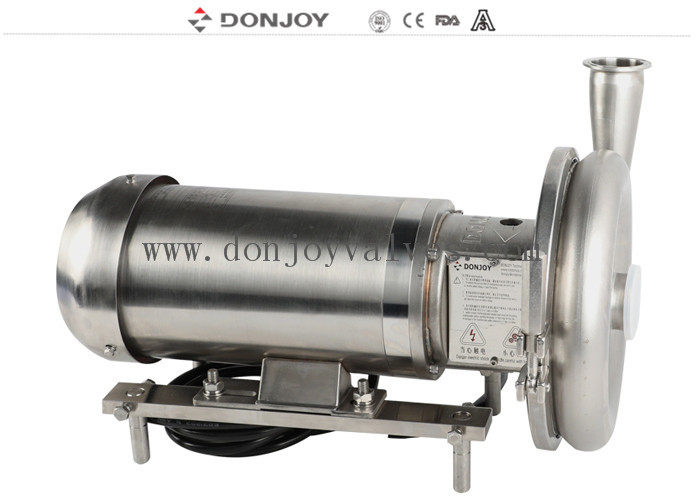

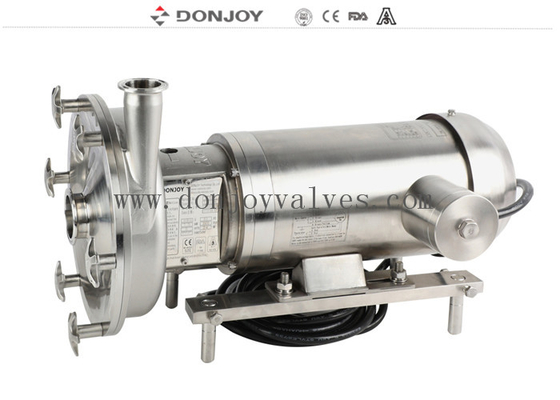

SLX stainless steel Centrifugal pump with IP69 motor for Ethanol
Solution for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity
DONJOY DJ-SLX series centrifugal pump is designed in SS whole, including motor not only optimize the internal structure, such as impeller design, dead angle treatment, mechanical seal pressure balance design and the machine seal is ompletely in the flushing area, but also optimize external sanitation of the pump, which makes its internal absolute sanitation and external reduction of dead angle. Single there no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP.
Description
1. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.
2. Certification: 3-A-02-11 NO.1759, FDA 177.2600
CE-MD/06-42 NO.705201616101-00
Specifications
| Product Name: | SLX stainless steel Centrifugal pump with IP69 motor for Ethanol |
| Pump Body Material: | SS304 / SS316L / 1.4301 / 1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) FPM (Viton) and NBR |
| Max. Flow: | 140 m³/h |
| Max. Speed: | 3600 min-1 |
| Max. Head: | 70 M |
| Max. power | 30KW |
|
Min. power |
0.55kw |
| Temperature Range: | -30°C-130 °C |
| Motor: | ABB / domestic / SIEMENS |
| Motor Frequency: | 50HZ, 60HZ |
| Surface treatment: | Inner polished and Sandblast outside |
| Application structure: | LX |
| Availably connection: | Tri-Clamp, Thread, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Surface treatment: |
Ra≤0.6μm , EP=Ra 0.4μm |
| Low discharge option : | Low discharge / diaphragm valve / ball valve / butterfly valve |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
| Level: | Sanitary grade |
Feature
Motor: Stinaless steel motor
Availabe connection: tri-clamped, threaded and Flanged.
Available standard: DIN, SMS, 3A, RJT, ISO / IDF
Sealing type: machanical seal
Function: flow control
Mechanical selection (Single mechanical / Double mechanical )
Materials :
1.SIC/C/EPDM
2.SIC/C/FKM
3.C/SIC/HNBR
4.SIC/SIC/EPMD
5.SIC/SIC/FKM
6.SIC/SIC/HNBR
7.TC/TC/EPDM
8.TC/TC/FKM
9.TC/TC/HNBR
Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Advantange
1.Maintenance disassembly and installation can be completed without professional staff and speical tools
2.Intial use of installation debugging, even if a short reverse rotaion will not be damaged
3. Impeller and shaft are connected by kewway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special-shafped flange
4.Compatible with siingle and double mechanine seal, only need to change machine seal.
Pump inlet&outlet connection various configuration
Selection Table
Drawing
Curve
Packaging Details
Plywood case or customerized. Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
