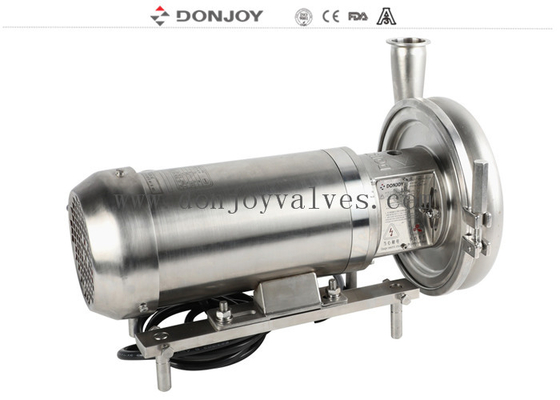

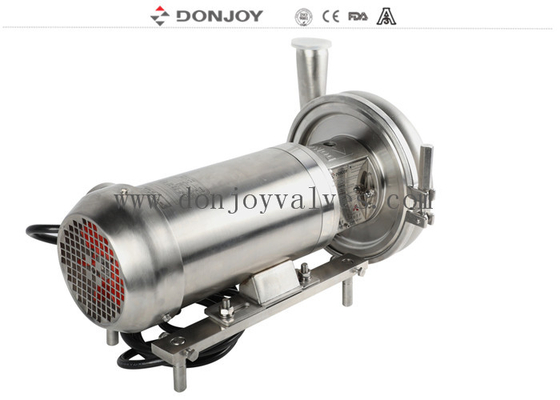

SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial

SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial

    • SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial
    • SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial
  • SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: SLX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Materials: SS304 / SS316L Motor: IP69 Stinaless Steel Motor
    Mechanical: Single / Double Seal Connection Way: Thread, Clamp, Flange, Welding, Union
    Power: 380V/ 50HZ, 440V/60HZ Medium: Beer / Drug / Beverage Etc.
    High Light:

    SS316L Sanitary Centrifugal Pump

    ,

    High Purity Sanitary Centrifugal Pump

    ,

    Thread Clamp Sanitary Centrifugal Pump

    SS316L SLX Serise Stinaless steel high purity centrifugal pump for Sanitary industrial



    Solution for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity



    DONJOY DJ-SLX series centrifugal pump is designed in SS whole, including motor not only optimize the internal structure, such as impeller design, dead angle treatment, mechanical seal pressure balance design and the machine seal is ompletely in the flushing area, but also optimize external sanitation of the pump, which makes its internal absolute sanitation and external reduction of dead angle. Single there no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP.


    Description

    1. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.

    2. Certification: 3-A-02-11 NO.1759, FDA 177.2600

                                 CE-MD/06-42 NO.705201616101-00



    Specifications

    Product Name: SS316L SLX Serise Stinaless steel high purity centrifugal pump for Sanitary industrial
    Pump Body Material: SS304 / SS316L / 1.4301 / 1.4404
    Seal Material: EPDM (Standard, FDA approval) FPM (Viton) and NBR
    Max. Flow: 140 m³/h
    Max. Speed: 3600 min-1
    Max. Head: 70 M
    Max. power 30KW

    Min. power

    0.55kw

    Temperature Range: -30°C-130 °C
    Motor: ABB / domestic / SIEMENS
    Motor Frequency: 50HZ, 60HZ
    Surface treatment: Inner polished and Sandblast outside
    Application structure: LX
    Availably connection: Tri-Clamp, Thread, Flange
    Availably standard: DIN, SMS, 3A, RJT, ISO/IDF
    Surface treatment:

    Ra≤0.6μm , EP=Ra 0.4μm

    Low discharge option : Low discharge / diaphragm valve / ball valve / butterfly valve
    Application scope: Dairy,food, beverage, pharmacy, cosmetic, etc
    Level: Sanitary grade


     Feature
    Motor:  Stinaless steel motor
    Availabe connection: tri-clamped, threaded and Flanged.
     Available standard: DIN, SMS, 3A, RJT, ISO / IDF
     Sealing type: machanical seal
     Function: flow control



    Mechanical selection (Single mechanical / Double mechanical )

    Materials :

    1.SIC/C/EPDM

    2.SIC/C/FKM

    3.C/SIC/HNBR

    4.SIC/SIC/EPMD

    5.SIC/SIC/FKM

    6.SIC/SIC/HNBR

    7.TC/TC/EPDM

    8.TC/TC/FKM

    9.TC/TC/HNBR

    SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial 0

    Applications
     1.  This pump is manufactured in stianless steel and with a shrouded motor.
    2.  Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



    Advantange

    1.Maintenance disassembly and installation can be completed without professional staff and speical tools

    2.Intial use of installation debugging, even if a short reverse rotaion will not be damaged

    3. Impeller and shaft are connected by kewway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special-shafped flange

    4.Compatible with siingle and double mechanine seal, only need to change machine seal.



    Pump inlet&outlet connection various configuration



    SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial 1

    Selection Table







    Drawing







    Curve

    SS316L SLX Serise Stinaless Steel High Purity Centrifugal Pump For Sanitary Industrial 2



    Packaging Details

    Plywood case or customerized. Or as per the request of customers.


    Delivery details

    Usually within 20 days after receiving T/T down payment.
