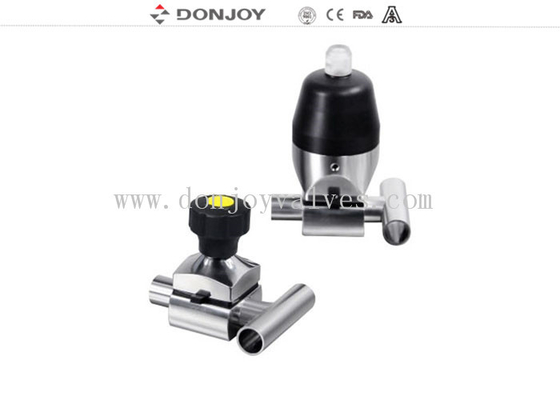

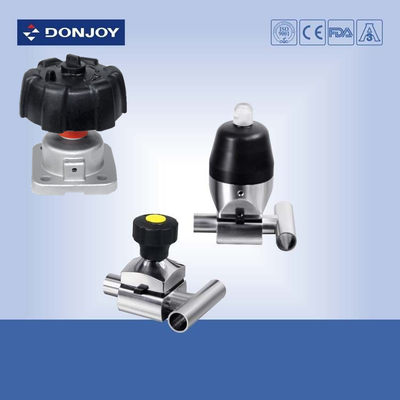

316L Mini - type Tee Three - way Sanitary Diaphragm Valve T type Tee

316L Mini - type Tee Three - way Sanitary Diaphragm Valve T type Tee

    • 316L Mini - type Tee Three - way Sanitary Diaphragm Valve T type Tee
    • 316L Mini - type Tee Three - way Sanitary Diaphragm Valve T type Tee
  • 316L Mini - type Tee Three - way Sanitary Diaphragm Valve T type Tee

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO. MINI-VGM0S2, NO.MINI-VGM0Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: Mini-type Tee Diaphragm Valve Materials: SS316L / 1.4404
    Size: 1/4'' - 3/4'', DN6 - DN15 Operation: Plastic Hand Wheel / Actuator
    Connection: Welding Gasket: EPDM + PTFE
    Feature: Three Way Function: Flow Control
    High Light:

    diaphragm check valve

    ,

    3 way diaphragm valve

    Stainless steel 316L Mini - type Tee Three - way Diaphragm Valve for phamacy hygienic process


    Specifications

    Product Name:

    316L SS Mini-type Tee Diaphragm Valve for phamacy hygienic process

    Valve Body Material:

    SS316L

    Seal Material:

    Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces

    PTFE+EPDM

    Max Working Pressure:

    10 Bar

    Max.WorkingTemperature:

    150 degree C

    Availably  size:

    1/4”-3/4”, DN6-DN15

    Availably connection:

    Clamp/weld/thread/special connection

    Availably standard:

    3A/BPE/DIN/ISO/IDF

    Operation:

    Manual or pneumatic is optional

    Structure:

    Mini model

    Availably structure:

    Straight, tee, U-type, tank bottom

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc



    Description
    Various configuration of Diaphragm valve
    1. Didaphragm valve with Pisitioner / Process Controller (IL-TOP)
    2. Diaphragm valve with Control Unit (C-Top)
    3. Valve position Regulator
    4. Position Sensor Module
    5. Plastic Handle
    6. Stainless steel handle
    7. Stianless steel acutor
    8. Electric Diaphragm valve
    9. Plastic Acutor
    10. Body: Casting / Forging


    Packaging Details
    Bubble pack for each valve.
    Outside packing are carton or plywood cases.
    Or as per the request of customers.


    Delivery details
    Usually within 20 days after receiving T/T down payment.


    Product drawing

    316L Mini - type Tee Three - way Sanitary Diaphragm Valve T type Tee 0
