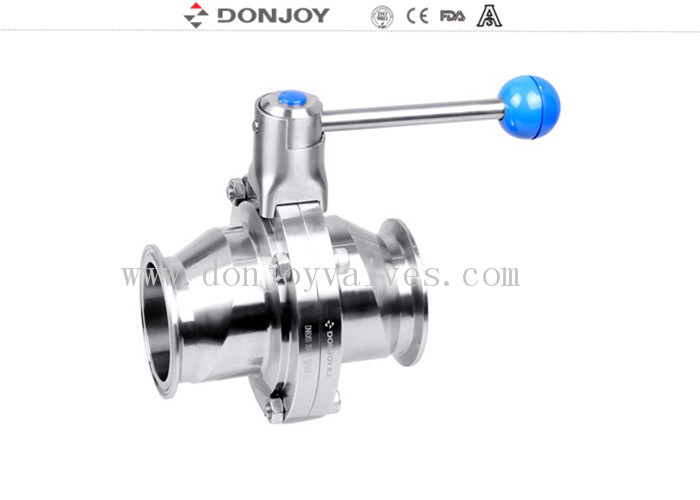

DN10-DN300 sanitary stainless steel butterfly valves with union ends

DN10-DN300 sanitary stainless steel butterfly valves with union ends

    • DN10-DN300 sanitary stainless steel butterfly valves with union ends
    • DN10-DN300 sanitary stainless steel butterfly valves with union ends
  • DN10-DN300 sanitary stainless steel butterfly valves with union ends

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Product Name: Manual Butterfly Valve Materials: 304/316L
    Size: DN10-DN300, 1/2"-12" Operation: Mnaul
    Connection: Nut And Thread
    High Light:

    stainless butterfly valves

    ,

    pneumatic butterfly valve

    DN10-DN300 sanitary stainless steel butterfly valves with nut and thread connection ends


    Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.


    Specifications

    Product Name:

    DN10-DN300 sanitary stainless steel butterfly valves with nut and thread connection ends

    Valve Body Material:

    SS304/316L

    Seal Material:

    EPDM (standard) FPM/SILICON/NBR, FDA177.2600

    MaxWorking Pressure:

    10Bar

    Max.Working Temperature:

    130 degree C

    Available  size:

    DN10-DN300, 1/2"-12"

    Available connection:

    Clamp/welding/thread/special connection

    Available standard:

    3A/DIN/SMS/RJT/ISO/IDF

    Operated:

    Manual,Pneumatic, Electric

    Handle application:

    Two-position handle, three-position handle, four-position
    pull handle, multi-position plastic handle and multi-
    position stainless steel handle

    Control:

    Smart valve positioner / C-TOP control / position sensor

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Surface finishing:

    Ra≤0.8μm

    Artwork:

    Forging


    Material
    The material connected with others: AISI 316L / 1.4404
    The material in other parts: AISI 304
    Seal ring: EPDM FDA 177.2600
    Internal surface finish: Ra ≤ 0.8μm
    External surface finish: CNC fine machining


    Options
    Gasket: NBR / MVQ / FPM
    Pneumatic actuator of double acting and single acting
    Inductive position sensor
    C - TOP control head

    Positioner IL-TOP
    Position sensor
    Connection: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


    Handle selection
    Two-position handle;
    three-position handle;
    four-position pull handle;
    multi-position plastic handle;
    multi-position stainless steel handle;


    Packaging Details
    Bubble pack for each valve.
    Outside packing is carton or plywood cases.
    Or as per the request of customers.


    Delivery details
    Usually within 20 days after receiving T/T down payment.


    Display
    DN10-DN300 sanitary stainless steel butterfly valves with union ends 0

    DN10-DN300 sanitary stainless steel butterfly valves with union ends 1

    DN10-DN300 sanitary stainless steel butterfly valves with union ends 2
