Donjoy Tank Bottom Valve with internal open elbow type

Large Image : Donjoy Tank Bottom Valve with internal open elbow type

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Carton, Wooden Case
Delivery Time:	accoding to order
Payment Terms:	T/T,L/C, Credit Card
Supply Ability:	5000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Product Name:	Internal Open Tank Bottom Valve	Power:	Handwheel
Material:	SS304/SS316	Size:	1"-4"
Pressure:	Medium Pressure	Type:	Valve Core Shrink Type
Connection:	Welded /clamped
Highlight:	flush bottom tank valve , flush bottom valves

Donjoy Tank Bottom Valve with internal open elbow type

Description
1. Manual: handwheel
2. Open: internal open
3. Valve core: shrink type
4. Elbow type: 45° or 90°
5. Can be assembled with CIP

Specification

Product Name:	304/316L handwheel internal open Tank Bottom Valve with Valve Core Shrink Type
Valve Body Material:	SS316L/SS304
Seal Material:	NBR or EPDM or VITON
Working Pressure:	10 Bar / 145PSI
Max.Working Temperature:	-10℃to +120℃(EPDM)
Available connection:	DIN, Clamp, SMS, RJT, IDF...Flange
Application scope:	Dairy,food processing, beverage, pharmacy, cosmetic, etc
Feature:	Dead angle better
Design:	Dead conner minimized design

Application

The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in dairy, food processing, beverage, pharmaceutical and fine chemical industries.

Operating Principle

1. Operated by Air / Spring, Air/Air

2.Compressedair push shaft to open and close valve

3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure.

Design and Features

1. 3A sanitary design

2.Complete discharge system avoids retention

3. Normally closed valve (Closed by spring)- standard version

4.Normally open valve ( Opened by spring) by a 180 degree rotating of the pneumatic actuator

5. The valve seat opens into the tank to avoid accidental openings

6. 360° adjustable body, even after welding the flange to the tank

7. Open lantern for visual inspection of the shaft sealing.

8. Easy disassembly by loosening the clamp

Product photo

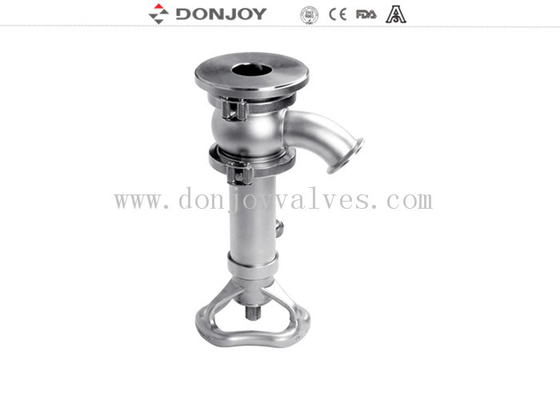

Donjoy Tank Bottom Valve with internal open elbow type 0

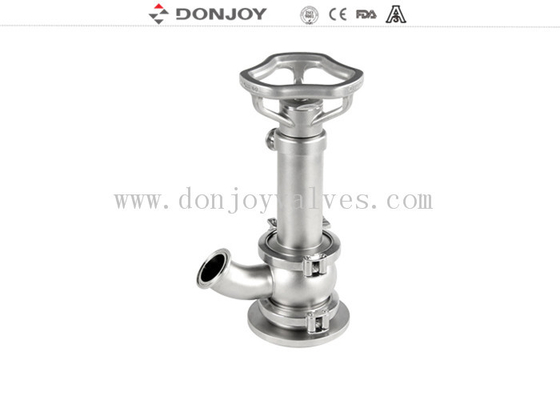

Donjoy Tank Bottom Valve with internal open elbow type 1
