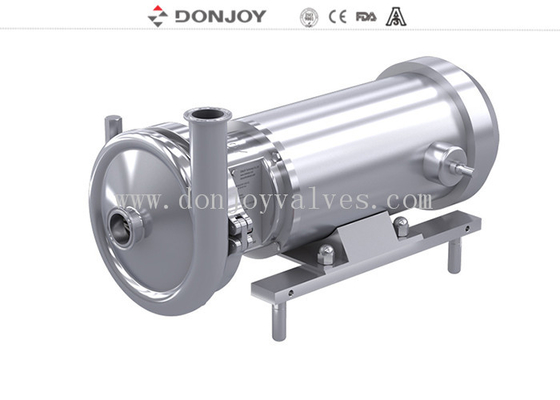

2.2kw IP69 Beverage Liquid Transfer High Purity Pumps

2.2kw IP69 Beverage Liquid Transfer High Purity Pumps

    • 2.2kw IP69 Beverage Liquid Transfer High Purity Pumps
    • 2.2kw IP69 Beverage Liquid Transfer High Purity Pumps
    • 2.2kw IP69 Beverage Liquid Transfer High Purity Pumps
  • 2.2kw IP69 Beverage Liquid Transfer High Purity Pumps

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: SCLX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Materials: SS316L Type: SCLX
    Flow Rate: 10 - 30T/H Inlet: 2" Thread / Clamp / Ferrule
    Outlet: 1.5" Thread / Clamp / Ferrule Motor Type: Could Be Optional
    Item Name: Centrifugal Pump With Opening Peller
    High Light:

    Liquid Transfer High Purity Pumps

    ,

    Beverage High Purity Pumps

    ,

    IP69 Liquid Transfer Pump

    Food grade Beverage/beer /liquid transfer pump centrifugal pump with IP69 Motor



    Solution for high effciency, low noise, stainless steel motor, ip69 proof, diving, clamp pump head, easy to clean, whole machine washable, simple and economical maintenance, high purity



    Donjoy DJ-SCLX Series centrifugal pump is upgraded from SKS in ss whole, including motor, not only optimize the internal structure, such as impeller design, dead angle treatment, mechanical seal is designed as pressure balance and completely in flushing area, but also optimize external sanitation of the pump, which makes internal absolute sanitarion and reduce external dead angel.

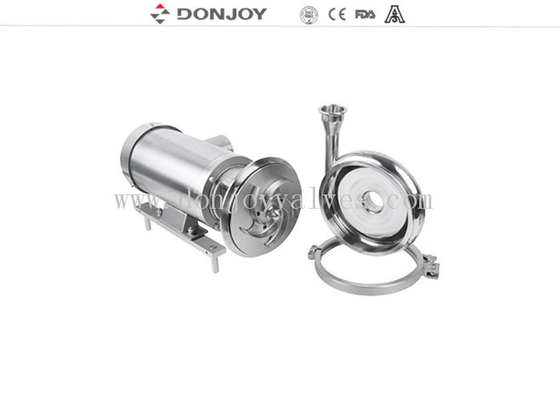

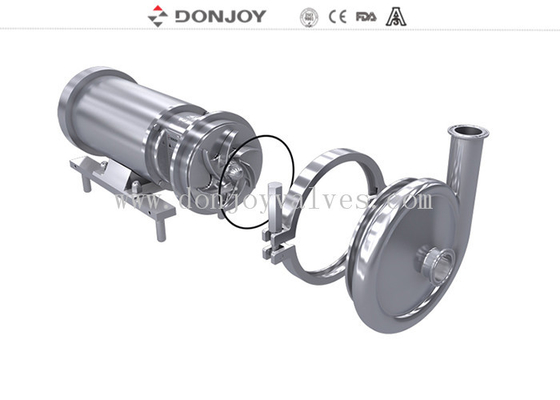

    Since there is no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP.In addition, DJ-SCLX series pump, has kept the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 360° , Pump cover is connected by a clamp, which keeps high efficiency in the maintenanceof the pump and replacement of mechanical seal without special tool, and reduces the highly professional requirements to maintenance personnel. Therefore, the DJ-SCLX series centrifugal pump have achieved the goal of high efficiency, hygiene, high reliability and low cost, makeing it a high performance pump.



    Specifications



    Product Name:

     Food grade Beverage/beer /liquid transfer pump centrifugal pump with IP69 Motor

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM (Standard, FDA approval) FPM(Viton) and NBR

    Max. Flow:

    120 m3/h

    Max. Speed:

    3600 min-1

    Max. Head:

    70H(m)

    Max. Working Pressure:

    7 bar/99 PSI

    Max. Working

    Temperature:

    120 °C

    Mechanical seal:

    SIC/SiC/EPDM(Standard), C/SIC, TC/TC

    Sealing type:

    Flushed double mechanical seal/single mechanical seal(standard)

    Motor power:

    1.1kw, 1.5kw, 2.2kw....

    Voltage:

    110V, 220V, 380V,440V

    Motor:

    ABB/domestic/SIEMENS

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    SCLX

    Available connection:

    Tri - Clamp, Thread, Flange

    Available standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Impeller Opening impeller
    Transfer Driven by rotary impeller

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.





    Description

    Options

    1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

    2. Gasket: viton/NBR

    3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

    4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

    5. Open Impeller, Close Impeller





    Applications

    1. This pump is a whole including the motor and pump are made of stainless steel, not only high clean exterior and interior design, also online high-pressure water rinse. IP67 up to IP69 rating



    2.This pump have a high discharge,low noise, igh flow, no dead-ends. high-performance and other technical characteristics. Mother and manufacture high purity materials. Compliance with ASME BPE and EHEDG high Standards. Certified 3A-02-10,CE-MD/06/42/EC.



    Technical Advantages

    Maintenance disasembly and instllat can be completed without professional staff and special tools

    Initial use of installation debugging, even if a short reverse rotaion will not be damaged.

    Impleller and shaft are connected by kewya, impeller and mechanical seal rotating ring are connected by pin

    Mechnical seal static ring and pump body are connected by special-shaped flange.

    Compatible with single seal and double mechanical seal, only need to change mechanie seal.



    Selection Table

    2.2kw IP69 Beverage Liquid Transfer High Purity Pumps 0

    Drawing

    2.2kw IP69 Beverage Liquid Transfer High Purity Pumps 12.2kw IP69 Beverage Liquid Transfer High Purity Pumps 2

    2.2kw IP69 Beverage Liquid Transfer High Purity Pumps 3



    2.2kw IP69 Beverage Liquid Transfer High Purity Pumps 4

    Tag : Centrifugal pump, Impeller pump, Beverage pump
