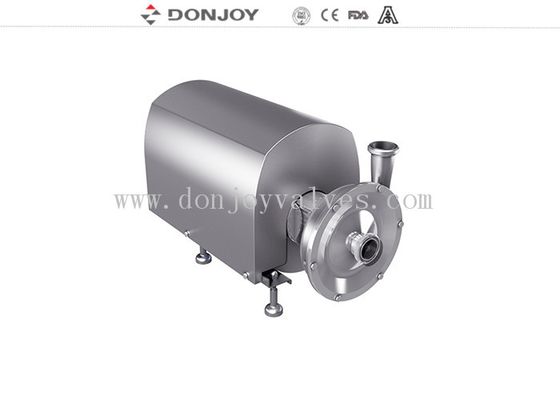

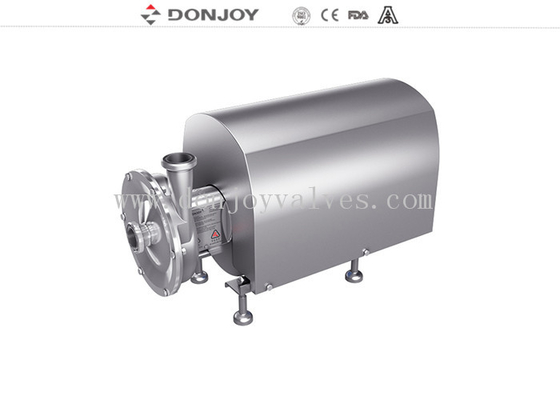

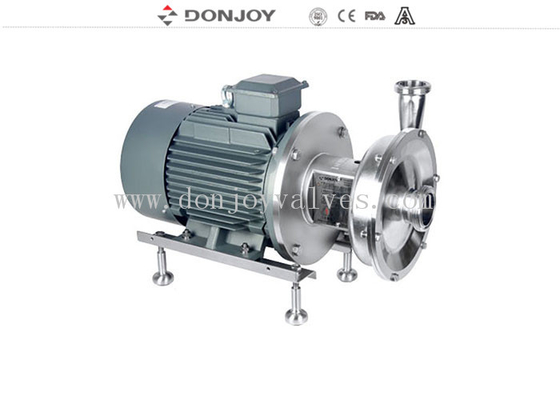

Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor

Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor

    • Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor
    • Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor
    • Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor
  • Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: LX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 15 set 30 working days
    Contact Now
    Detailed Product Description
    Item: SS Centrifugal Pump Operation: ABB Motor
    Mechanical: Single Seal Inlet: 2" Thread
    Outlet: 2" Thread Medium: Fluid
    High Light:

    self priming pump

    ,

    high pressure pumps

    Stainless steel High Purity Pumps centrifugal pump for fluid with ABB motor



    Description
    Options

    1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM
    2. Gasket: viton / NBR
    3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
    4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ



    Characteristics
    With the change of market demand and the development of technology, we hope to set up new technical standards in the field of high clean pump, for this reason, we have made a series of technology upgrades and optimization with the help of the Fluid science software analysis and our more than 20 years experience in manufacturing and engineering application.
    Donjoy DJ-LX series Centrifugal pump ,not only optimize the internal structure, such as impeller design,dead angle treatment,machine seal pressure balance design and the machine seal is completely in the flushing area ,but also optimize external sanitation of the pump , which makes its internal absolute sanitation and external reduction of dead Angle.
    Since there is no dead Angle area, it is easy to be cleaned by CIP and sterilized by SIP. In addition, DJ - LX series pump, has kept the maximum flexibility of combined applications,for example, the pump outlet angle can be arbitrarily adjusted from 0 ° to 135 °, the pump
    cover adopts hand wheel nut, which keeps high efficiency in the maintenance of the pump and replacement of machine seal, and reduces the highly professional requirements to maintenance
    personnel without special tools. Therefore, the DJ-LX series centrifugal pump has achieved the goal of high efficiency, health, high reliability and low cost, making it a high performance pump.


    Specifications



    Product Name:

    mini stainless steel centrifugal High Purity Pumps for pharmaceutical

    Valve Body Material:

    SS304 / SS316L / 1.4301 / 1.4404

    Seal Material:

    EPDM (Standard, FDA approval) FPM (Viton) and NBR

    Max. Flow:

    150 m3/h

    Max. Speed:

    3600 min-1

    Max. Head:

    70H (m)

    Max. Working Pressure:

    7 bar / 99 PSI

    Max. Working

    Temperature:

    120 °C

    Mechanical seal:

    SIC/Sic/EPDM(Standard), C/SIC, TC/TC

    Sealing type:

    Flushed double mechanical seal / single mechanical seal(standard)

    Motor power:

    1.1kw, 1.5kw, 2.2kw

    Voltage:

    110V, 220V, 380V

    Motor:

    ABB / domestic / SIEMENS

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    LX

    Availably connection:

    Tri-Clamp, Thread, Flange

    Availably standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Eclectic

    Low discharge option

    Low discharge/diaphragm valve/ball valve/butterfly valve

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.



    Technical Advantages:
    1.Maintenance disassembly and installation can be completed without professional staff and special tools
    2.Initial use of installation debugging, even if a short reverse rotation will not be damaged
    3.The impeller and shaft are connected by the key groove, the impeller and the machine seal are limited and fixed by the petal
    4.Compatible with single and double machine seal, only need to change machine seal.



    Applications
    1. This pump is manufactured in stianless steel and with a shrouded motor.
    2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.



    Packaging Details
    Plywood case or customerized. Or as per the request of customers.



    Delivery details
    Usually within 20 days after receiving T/T down payment.

    Size and Installation
    There are various kinds of model of centrifugal pump, please check the form below for detailed information.


    Fluid Medium Stainless Steel Pumps Centrifugal Pump Fit Fluid With ABB Motor 0
