KLX-10 centrifugal beverage High Purity Pumps for beer / pharmaceutical

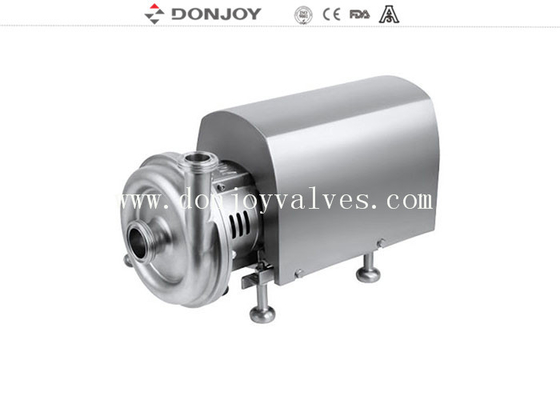

Large Image : KLX-10 centrifugal beverage High Purity Pumps for beer / pharmaceutical

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	KLX-10

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Materials:	SS304	Type:	KLX-10
Operation:	Mechanical ABB Motor	Mechanical:	Single Seal
Connection:	1.5" Thread	Power:	380v / 50HZ
Medium:	Beer / Drug / Beverage Etc.
Highlight:	self priming pump , lobe rotary pump

KLX-10 centrifugal beverage High Purity Pumps for beer / pharmaceutical

Description
Options
1. Mechanical seal: SIC / SICE / EPDM, TC / TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5. Outside Surface sinishing:sandblast or mirror polish

Specifications

Product Name:	KLX-10 SS304 centrifugal beverage pump open impeller for beer, pharmaceutical
Valve Body Material:	SS304 / SS316L / 1.4301 / 1.4404
Seal Material:	EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow:	150 m3/h
Max. Speed:	3600 min-1
Max. Head:	70H (m)
Max. Working Pressure:	7 bar / 99 PSI
Max. Working Temperature:	120 °C
Mechanical seal:	SIC/Sic/EPDM(Standard), C/SIC, TC/TC
Sealing type:	Flushed double mechanical seal / single mechanical seal(standard)
Motor power:	1.1kw, 1.5kw, 2.2kw
Voltage:	110V, 220V, 380V
Motor:	ABB / domestic / SIEMENS
Motor Frequency:	50HZ, 60HZ
Surface treatment:	Inner polished and Sandblast outside
Application structure:	KS/BS
Availably connection:	Tri-Clamp, Thread, Flange
Availably standard:	DIN, SMS, 3A, RJT, ISO/IDF
Operated:	Eclectic
Low discharge option	Low discharge/diaphragm valve/ball valve/butterfly valve
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Packaging Details:	Plywood case or customerized. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Feature
Motor: ABB / domestic / SIEMENS Motor ( optional )
Availabe connection: tri-clamped, threaded and Flanged.
Available standard: DIN, SMS, 3A, RJT, ISO / IDF
Sealing type: machanical seal
Function: flow control

Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
