Pneumatic thin film Regulating Valve Control Valve with intelligent positioner

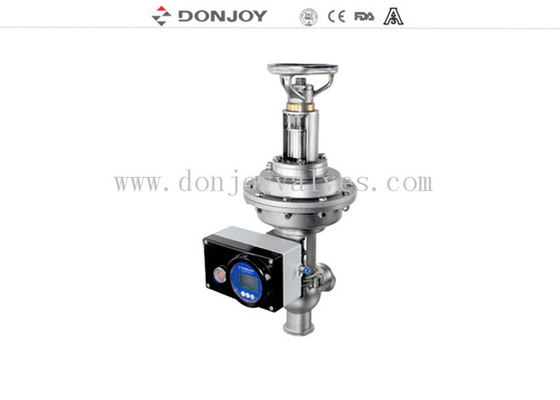

Large Image : Pneumatic thin film Regulating Valve Control Valve with intelligent positioner

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box or wooden box
Delivery Time:	5-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Thin Film Regulating Valve	Size Of Panel:	1''-12'',DN25-DN300
Media:	SS 304 / 316L	Connection:	Welding / Thread / Clamp / Flange
Funtion:	Regulating Fluid	Feature:	Diaphragm - Type Pneumatic Actuator
Structure:	With Square - Type Positioner
Highlight:	ball valve diaphragm , diaphragm actuator valve

Pneumatic thin film Regulating Valve Control Valve with intelligent positioner

Specifications:

Product Name:	Pneumatic thin film Regulating Valve Control Valve with intelligent positioner
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM
Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Available size:	DN25 - DN300 or 1" - 12"
Available connection:	DIN / SMS / RJT / IDF / ISO connection
Air Operation:	can be configured to intelligent / C-TOP controller
Operate:	Pneumatic
Certificate:	FDA, CE
Feature	Precise positioning
Advantage	Diaphragm - type pneumatic actuator

Description:
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A

Applications:
A regulating valve is a pneumatic proportional valve, which is an equipment to control flow. It's widely used in the dairy, food, beverage, pharmacy and chemical industry.The most important application is in pressure control, flow control, level, ect.

Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, intelligent process controller can control position and flow rate (PID).

Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

Technical advantages:
Compared with other actuators, it could be installed on a lower height, with simple installation,it could bear higher pressure, which is suitable for cut-off regulating valve.Its effect of water hammer-resistant is ideal, and it's convenient to install valve positioner.

Technical data

SIZE	Q	H	W
200	200	220	263
286	286	256	263

Pneumatic thin film Regulating Valve Control Valve with intelligent positioner 0

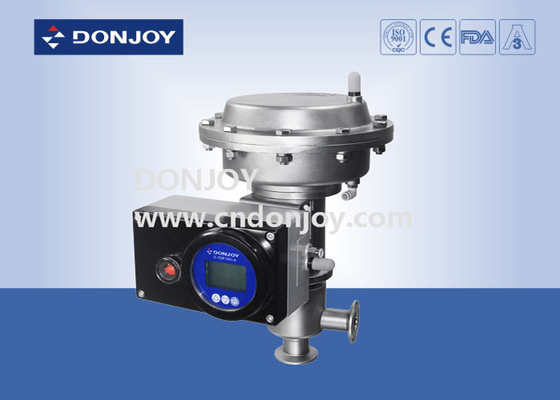

Product display

Pneumatic thin film Regulating Valve Control Valve with intelligent positioner 1
