SS304 DN25-DN100 Pressure Regulating Valve EPDM Gasket with Valve Positioner

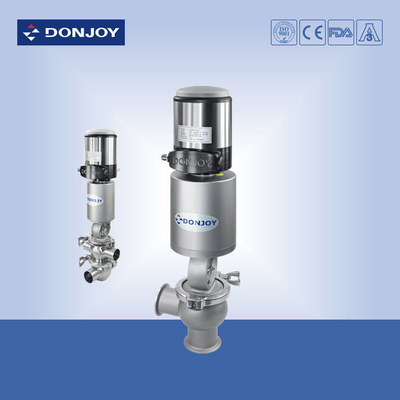

Large Image : SS304 DN25-DN100 Pressure Regulating Valve EPDM Gasket with Valve Positioner

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE,3A,FDA
Model Number:	NO.VTJ111Q1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Pneumatic Regulating Valve	Size:	DN25-DN100 Or 1" - 4"
Operation:	Pneumatic	Materials:	SS 304 / 316
Feature:	With Actuator	Function:	Flow Control
Highlight:	diaphragm actuator valve , pressure reducing valve

DN25-DN100 pressure regulating valve EPDM Gasket with positioner

Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A

Specifications

Product Name:	Pneumatic Regulating Valve with Control Head
Valve Body Material:	AISI304, AISI316L
Seal Material:	EPDM
Working Pressure:	10Bar
Max. Working Temperature	120 degree C
Available size:	DN25-DN100 or 1" - 4"
Available connection:	CLAMP, DIN, SMS
Air Operation:	can be configured to intelligent/C-TOP controller
Operate:	Pneumatic
Certificate:	FDA,CE
Body Combination Type	20,30,11,12,21A,22A
Compressed air pressure	6 - 8 bar / 87 - 116 PSI

Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)

Design and function
Designed according to 3A sanitary standard.
Normally closed valve (standard version)
Adjusting shaft of equal percent
360 degree adjustable valve body
With compact design
Double function positioning
PD: position controller
PID: process controller
Assembly/disassembly just to loosen the clamp
Standard connection: welding, clamping, threading

Technical features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: NBR / FPM ( optional )
Connection standard: DIN / SMS / RJT / IDF / ISO

Product data

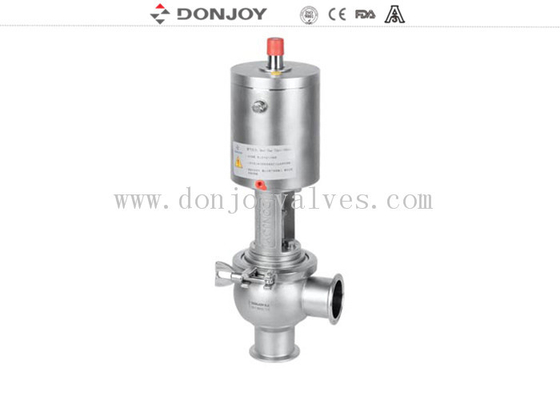

SS304 DN25-DN100 Pressure Regulating Valve EPDM Gasket with Valve Positioner 0

SS304 DN25-DN100 Pressure Regulating Valve EPDM Gasket with Valve Positioner 1

SS304 DN25-DN100 Pressure Regulating Valve EPDM Gasket with Valve Positioner 2
