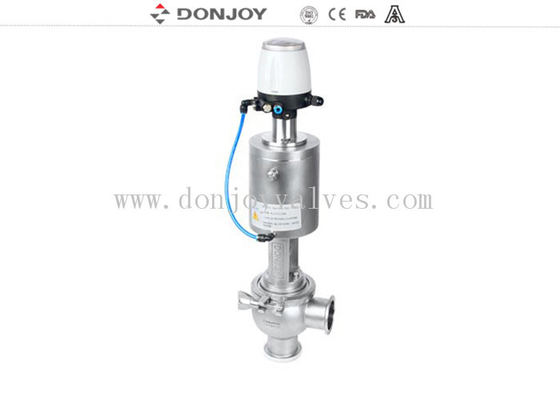

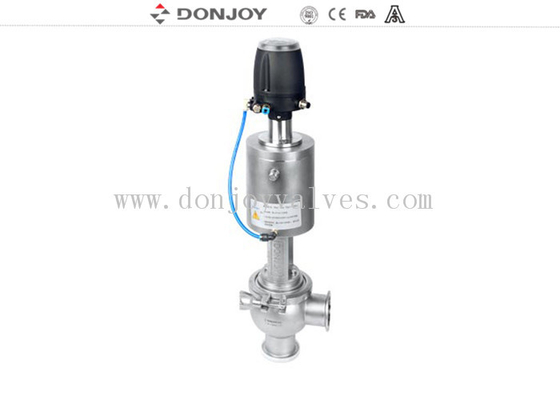

SS 304 3 Inch Aseptic Pneumatic Reversing Valve with Single Seat EPDM Gakset
Applications
Regulating valve is a pneumatic Proportional valve, which is an equipment to control the flow.It's widely used to the dairy, food, beverage, pharmacy and chemical industry.The most important application is in pressure control, flow control, level ect.
Specifications
|
Product Name:
|
SS 304 3 Inch Aseptic Pneumatic Reversing Valve with Single Seat EPDM Gasket
|
|
Valve Body Material:
|
AISI304, AISI316L
|
|
Seal Material:
|
EPDM(Standard)/FPM
|
|
Working Pressure:
|
10Bar
|
|
Max. Working Temperature:
|
120 degree C
|
|
Available size:
|
DN25-DN100 or 1" - 4"
|
|
Available connection:
|
CLAMP, DIN, SMS
|
|
Air Operation:
|
can be configured to an intelligent/C-TOP controller
|
|
Operate:
|
Pneumatic or Manual
|
|
Certificate:
|
FDA,CE
|
|
Structure
|
single-seat, double seats
|
Design and features
1.Compact and robust design
2.Size:1" to 4",DN25 to DN100
3.Normally close (NC) in the standard version
4.The valve can be changed (180 degrees) to normal open (NO) by simply reversing the position of the pneumatic actuator
5.Hygienic design according to 3A standard
6.360° adjustable body
7.Easy assemble/disassemble of internal parts by loosening a clamp fastener
8.Standard weld connection (mm or inch)
Options
1. Gasket:FPM(Vition R) in compliance with FDA 177.2600
2. Connections:DIN,SMS,RJT,IDF
3. Double acting pneumatic actuator
4. External position sensor
5.Stem barrier (if shaft sterilization is required)
6.Body jacket insulation
7.Valve position regulator
8.Double stop actuator
9.Diaphragm type valve cavity
10.C-TOP control unit
11. Surface finish:RA≤0.5UM
12.Manual operated
Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20, 30, 11, 12, 21A, 22A
Technical data
FAQ
Question 1- Are you factory or trading company?
We are factory.
Question 2- How about the warranty of your products?
1 year ,not including quick-wear part.Like O-ring
Question 3- What’s your payment terms?
For big amount:By T/T, 30% deposit and the 70% balance to be paid before ship out from DONJOY factory.
By TT, 50% deposit and the 50% balance to be paid before ship out from DONJOY factory
For small amount: 100% TT in advance before production
Question 4- How long is your production time?
It depends on the quantity of your order. Usually, it takes 15-35 days after we receive your deposit. While for large order, we can work over time to catch up your shipment.
Question 5- How can I get samples?
We are honored to offer you samples. The samples can be send by DHL or other international express you want.
