CIP Media Twin Screw SS316L High Purity Pumps

Large Image : CIP Media Twin Screw SS316L High Purity Pumps

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	LG/R

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	5000USD--15000USD
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	Model:	LGR-20,LGR-30,LGR-70
Connection:	Welding, Weld, Clamp,Thread,	Materials:	SS316L
Standard:	3A,DIN,RJT	Driver:	Motor
Media:	High Viscosity/Low Viscosity, CIP
Highlight:	SS316L High Purity Pumps , CIP Media High Purity Pumps , SS316L stainless steel pumps

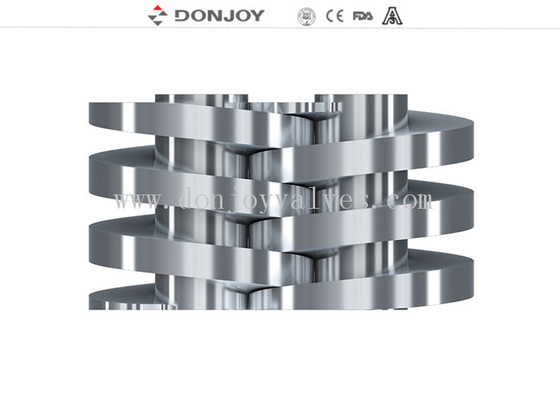

CIP Media Twin Screw SS316L High Purity Pumps 0

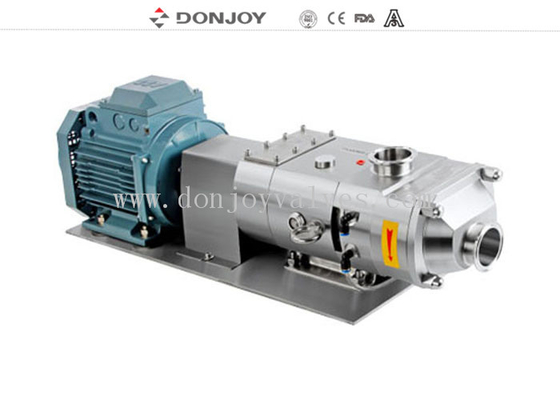

LGR-20 Twin Screw Pump to transfer higher vicosity and CIP Media

Description
Double screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc

It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.

It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on.

Specifications

Product Name:	SS Twin Screw Pump Double screw pump for material transportation and extraction
Material:	SS316L / 1.4404
Seal Material:	SIC / SIC / EPDM (Standard, FDA approval)
Max. Flow:	120 m3/h
Max.pressure:	20 bar
Max. working temperature:	150 C
Max. rev:	3500 rmp
Max particles:	23mm
Motor power:	2.2kw, 3kw….22kw
Feature	Movable
Voltage:	110V, 220V, 380V
Motor:	ABB,SEW, 50hz / 60hz
Surface treatment:	Ra≤0.6μm, EP=Ra0.4μm
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO / IDF
Certification	3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Delivery details:	Normally within 20 days after receiving T/T down payment.

Applications
This pump is deal for the transfer of viscous as well as low-viscous media in the food processing, cosmetics and pharmaceutical Industries.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.

Selection table

Connection way

CIP Media Twin Screw SS316L High Purity Pumps 2
