Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps

Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps

  • Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps
  • Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps
Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: LG/R
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: 5000USD--15000USD
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Brand: DONJOY Model: LGR-20,LGR-30,LGR-70
Connection: Welding, Weld, Clamp,Thread, Materials: SS316L
Standard: 3A,DIN,RJT Driver: Motor
Media: High Viscosity/Low Viscosity, CIP
High Light:

SIP High Purity Pumps

,

CIP High Purity Pumps

,

SIP herringbone gear pump

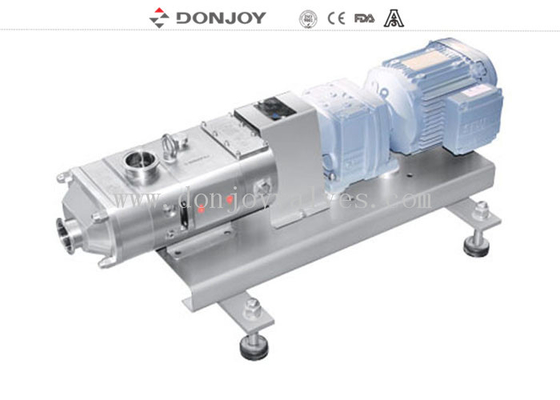

Variable frequency motor helical gear screw pump with whole stainless Steel materials for CIP and SIP



Applications

And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.


Specifications


Product Name:

Variable frequency motor helical gear screw pump with whole stainless Steel materials for CIP and SIP

Material:

100% stianless steel, products contact parts 316L

Seal Material:

SIC / SIC / EPDM (Standard, FDA approval)

Max. Flow:

110 m3/h

Max.pressure:

20 bar

Max. working temperature:

150 C

Max. rev:

3500 rmp

Max particles:

23mm

Motor power:

2.2kw, 3kw….22kw

Feature

Movable

Voltage:

110V, 220V, 380V,440v

Motor:

ABB,SEW, 50hz / 60hz

Surface treatment:

Ra≤0.6μm, EP=Ra0.4μm

Available connection:

Clamp, Thread Butt weld, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO / IDF

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Delivery details:

Normally within 20 days after receiving T/T down payment.



Twin screw pump for CIP Cleaning and media delivery configuration
Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 0
With its strong self priming capacity , the LG series screw pump have the alibity to deliver high viscosity and low viscosity medium, as well as cip liuqid extraction and cleaning functions. Choosing LG Serices screw pump will help you to reduce using cip dedicated pump and valve control system, it will save cost .




Design and features
1. material transportation and extraction
2. apply for CIP and SIP systems
3. no pulse phenomenon, no particle damage
4. high pressure, speed range, larage flow range and so on

Flexible soluction for two Direction reversible, High pressure, High Viscosity, Large Particle, Pulse free, Liquid Delivery.

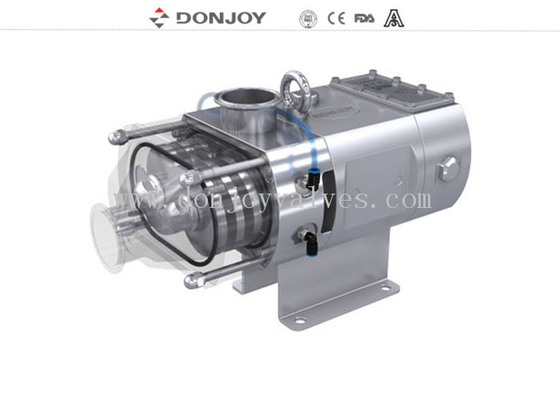

Choose the right screw spacing for your process

Option 1: Large screw spacing, large flow rate, Can deliver larger particles, But the pressure will be lower compared with samll spacing screw

Option 2: Samll Screw spacing, lower flow rate but higher pressure, the particles that can be transported will also be smaller.

Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 1
 Conbination of Twin screw PUMP

1 LG-R screw pump  (Inlet&outlet vertical with level)

2.LG-L Screw pump  (Inlet&outlet horizontal with level)

3.Screw pump + heating jacket

Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 2

4. Variable frequency motor helical gear screw pump

5.Motor direct-connected screw pump

6.Screw pump with whole cover

7.Screw pump with whole cover

8.Screw pump with material mixing connector

Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 3

9.Screw pump with external safety system

10.Screw pump with flanged hopper

11.Mechanical stepless speed regulating screw pump

12. Screw pump with trolley and console

Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 4

13. servo motor speed reducing output screw pump



Features

1.Pressure up to 300ps (20bar)

2.Special screw lock nut designed to extend service lift

3.There are no bearing and screws at the area contacting with medium

4.Large Diameter 17-4PH shaft for higher strength and stiffness. Helping to reducing vibration and extend seal lift

5.High precision heavy duty needle roller bearings.

6.Oil-lubricated bearings can be forwarder lubrication over the entire speed, temperature and pressure ranges

Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 5


Selection table
Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 6

Connection way
Stainless Steel Helical Gear twin srew pump CIP SIP High Purity Pumps 7
