Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE/FDA/ISO/3A
Model Number:
LG/R
Contact Us

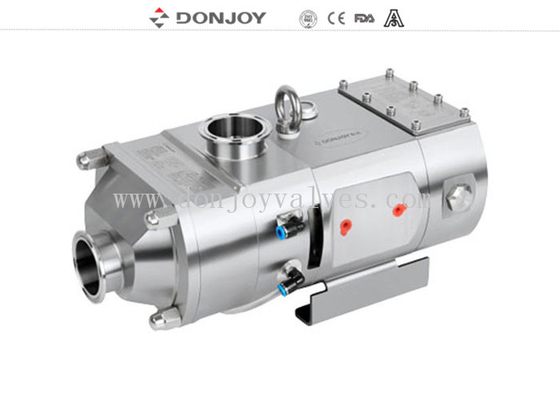

Ketchup Medicine Dairy Lower Viscosity twin Screw Vacuum Pump/SS316L DONJOY PUMP
Description
Double screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc
It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.
It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on.
Specifications
Product Name: |
High purity Twin Screw pump for ketchup/medicine and dairy with high or lower viscosity |
Material: |
100% stianless steel, products contact parts 316L |
Seal Material: |
SIC / SIC / EPDM (Standard, FDA approval) |
Max. Flow: |
110 m3/h |
Max.pressure: |
20 bar |
Max. working temperature: |
150 C |
Max. rev: |
3500 rmp |
Max particles: |
23mm |
Motor power: |
2.2kw, 3kw….22kw |
Feature |
Movable |
Voltage: |
110V, 220V, 380V,440v |
Motor: |
ABB,SEW, 50hz / 60hz |
Surface treatment: |
Ra≤0.6μm, EP=Ra0.4μm |
Available connection: |
Clamp, Thread Butt weld, Flange |
Available standard: |
DIN, SMS, 3A, RJT, ISO / IDF |
Certification |
3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00 |
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
Delivery details: |
Normally within 20 days after receiving T/T down payment. |
Applications
Twin screw pump has strong self priming ablity, can transport solid particles, gas liquid mixture, high viscosity, low viscosity and other materials. The pump not only can extract and convey materials, but also apply for CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost, It has extra characteristics, that other volume pump do not have, such as no pulse phenomenon, no particle damage, high pressure, wide speed range, large flow range and so on.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.
Twin screw pump for CIP Cleaning and media delivery configuration
With its strong self priming capacity , the LG series screw pump have the alibity to deliver high viscosity and low viscosity medium, as well as cip liuqid extraction and cleaning functions. Choosing LG Serices screw pump will help you to reduce using cip dedicated pump and valve control system, it will save cost .
Applications
Twin screw pump
1. has strong self-priming ability, can transport solid particles, gas-liquid mixture, high viscosity, low viscosity and other materials. But also apply for cip and sicp systems. Can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost. It has extra characteristics, that other volume pumps do not have. Such as no pulse phenomenon, no particle, damage, high pressure, wide speed range, large flow range.
Design and features
1. material transportation and extraction
2. apply for CIP and SIP systems
3. no pulse phenomenon, no particle damage
4. high pressure, speed range, larage flow range and so on
Flexible soluction for two Direction reversible, High pressure, High Viscosity, Large Particle, Pulse free, Liquid Delivery.
Choose the right screw spacing for your process
Option 1: Large screw spacing, large flow rate, Can deliver larger particles, But the pressure will be lower compared with samll spacing screw
Option 2: Samll Screw spacing, lower flow rate but higher pressure, the particles that can be transported will also be smaller.
Selection table
Directly selection table
Connection way
