Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor

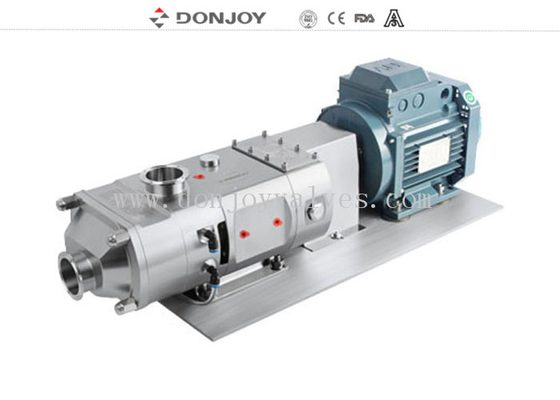

Large Image : Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	LG/R

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	5000USD--15000USD
Packaging Details:	Carton, Wooden Case
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	Model:	LGR-20,LGR-30,LGR-70
Connection:	Welding, Weld, Clamp,Thread,	Materials:	SS316L
Standard:	3A,DIN,RJT	Driver:	Motor
Media:	High Viscosity/Low Viscosity, CIP
Highlight:	CIP High Purity Pumps , Reversible High Purity Pumps , CIP sanitary centrifugal pump

Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor
viscosity ,large particle

Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor 0

LGR-20 Twin Screw Pump to transfer higher vicosity and CIP Media
Description
Double screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc
It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.
It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on.
Specifications

Product Name:	High purity Twin Screw pump for two direction reversible, high pressure, high viscosity ,large particle
Material:	100% stianless steel, products contact parts 316L
Seal Material:	SIC / SIC / EPDM (Standard, FDA approval)
Max. Flow:	110 m3/h
Max.pressure:	20 bar
Max. working temperature:	150 C
Max. rev:	3500 rmp
Max particles:	23mm
Motor power:	2.2kw, 3kw….22kw
Feature	Movable
Voltage:	110V, 220V, 380V,440v
Motor:	ABB,SEW, 50hz / 60hz
Surface treatment:	Ra≤0.6μm, EP=Ra0.4μm
Available connection:	Clamp, Thread Butt weld, Flange
Available standard:	DIN, SMS, 3A, RJT, ISO / IDF
Certification	3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00
Application scope:	Dairy, food, beverage, pharmacy, cosmetic, etc
Delivery details:	Normally within 20 days after receiving T/T down payment.

Applications

Twin screw pump has strong self priming ablity, can transport solid particles, gas liquid mixture, high viscosity, low viscosity and other materials. The pump not only can extract and convey materials, but also apply for CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost, It has extra characteristics, that other volume pump do not have, such as no pulse phenomenon, no particle damage, high pressure, wide speed range, large flow range and so on.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.

Twin screw pump for CIP Cleaning and media delivery configuration

With its strong self priming capacity , the LG series screw pump have the alibity to deliver high viscosity and low viscosity medium, as well as cip liuqid extraction and cleaning functions. Choosing LG Serices screw pump will help you to reduce using cip dedicated pump and valve control system, it will save cost .

Selection table
Two Direction Reversible Large Particle CIP High Purity Pumps/ Twin screw pump with directly motor 2

Connection way
