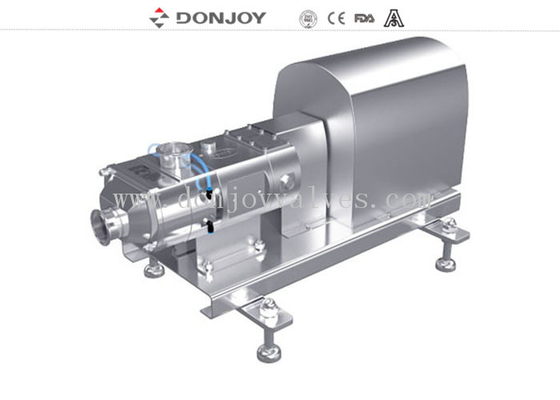

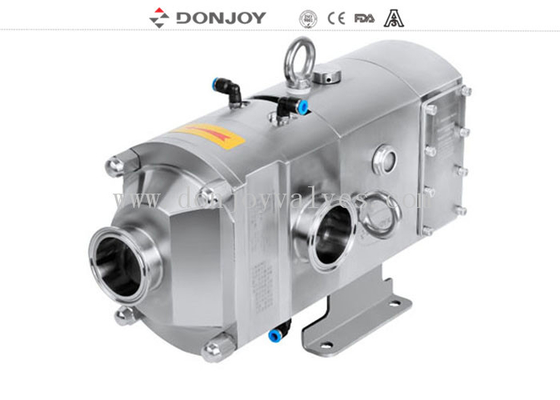

Fat Oil Meat Processing Ra0.4μm Screw Type Pump

Fat Oil Meat Processing Ra0.4μm Screw Type Pump

Fat Oil Meat Processing Ra0.4μm Screw Type Pump

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: LG/R

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: 5000USD--15000USD
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Brand: DONJOY Model: LGR-20,LGR-30,LGR-70
Connection: Welding, Weld, Clamp,Thread, Materials: SS316L
Standard: 3A,DIN,RJT Driver: Motor
Media: High Viscosity/Low Viscosity, CIP
High Light:

Ra0.4μm Screw Type Pump

,

Fat Oil Screw Type Pump

,

Ra0.4μm hydraulic screw pump

Purity Twin Screw pump for fat and Oil, Cream filling and meat processing with motor Cover

Description
Double screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc
It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.
It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on.
Specifications


Product Name:

Purity Twin Screw pump for fat and Oil, Cream filling and meat processing with motor Cover

Material:

100% stianless steel, products contact parts 316L

Seal Material:

SIC / SIC / EPDM (Standard, FDA approval)

Max. Flow:

110 m3/h

Max.pressure:

20 bar

Max. working temperature:

150 C

Max. rev:

3500 rmp

Max particles:

23mm

Motor power:

2.2kw, 3kw….22kw

Feature

Movable

Voltage:

110V, 220V, 380V,440v

Motor:

ABB,SEW, 50hz / 60hz

Surface treatment:

Ra≤0.6μm, EP=Ra0.4μm

Available connection:

Clamp, Thread Butt weld, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO / IDF

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Delivery details:

Normally within 20 days after receiving T/T down payment.


Applications

Twin screw pump has strong self priming ablity, can transport solid particles, gas liquid mixture, high viscosity, low viscosity and other materials. The pump not only can extract and convey materials, but also apply for CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost, It has extra characteristics, that other volume pump do not have, such as no pulse phenomenon, no particle damage, high pressure, wide speed range, large flow range and so on.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.

Twin screw pump for CIP Cleaning and media delivery configuration
Fat Oil Meat Processing Ra0.4μm Screw Type Pump 0
With its strong self priming capacity , the LG series screw pump have the alibity to deliver high viscosity and low viscosity medium, as well as cip liuqid extraction and cleaning functions. Choosing LG Serices screw pump will help you to reduce using cip dedicated pump and valve control system, it will save cost .




Design and features
1. material transportation and extraction
2. apply for CIP and SIP systems
3. no pulse phenomenon, no particle damage
4. high pressure, speed range, larage flow range and so on

Flexible soluction for two Direction reversible, High pressure, High Viscosity, Large Particle, Pulse free, Liquid Delivery.



Choose the right screw spacing for your process

Option 1: Large screw spacing, large flow rate, Can deliver larger particles, But the pressure will be lower compared with samll spacing screw

Option 2: Samll Screw spacing, lower flow rate but higher pressure, the particles that can be transported will also be smaller.

Fat Oil Meat Processing Ra0.4μm Screw Type Pump 1
 Conbination of Twin screw PUMP

1 LG-R screw pump  (Inlet&outlet vertical with level)

2.LG-L Screw pump  (Inlet&outlet horizontal with level)

3.Screw pump + heating jacket

Fat Oil Meat Processing Ra0.4μm Screw Type Pump 2

4. Variable frequency motor helical gear screw pump

5.Motor direct-connected screw pump

6.Screw pump with whole cover

7.Screw pump with whole cover

8.Screw pump with material mixing connector

Fat Oil Meat Processing Ra0.4μm Screw Type Pump 3

9.Screw pump with external safety system

10.Screw pump with flanged hopper

11.Mechanical stepless speed regulating screw pump

12. Screw pump with trolley and console

Fat Oil Meat Processing Ra0.4μm Screw Type Pump 4

13. servo motor speed reducing output screw pump


Selection table
Fat Oil Meat Processing Ra0.4μm Screw Type Pump 5

Connection way
Fat Oil Meat Processing Ra0.4μm Screw Type Pump 6
