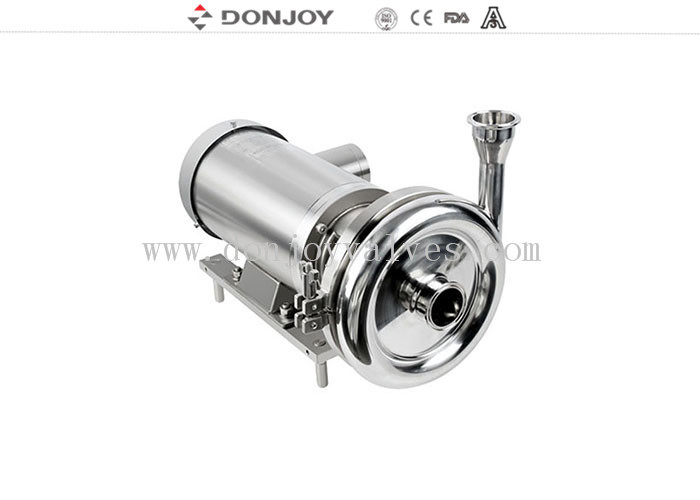

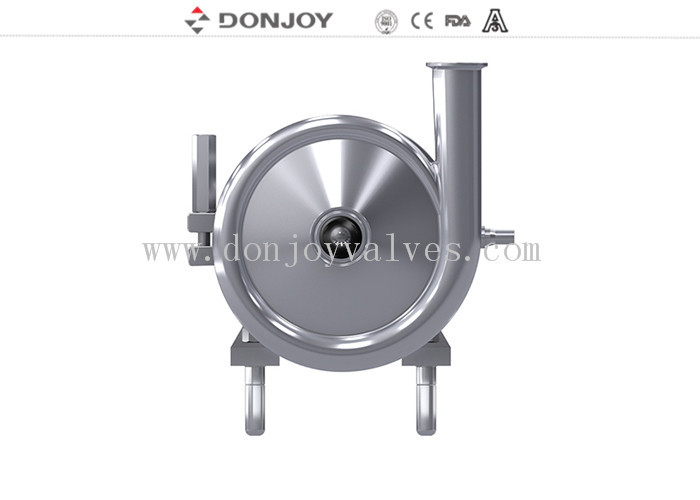

Donjoy Whole stainless steel centrifugal pump/High purity pump
Solution for high effciency, low noise, stainless steel motor, ip69 proof, diving, clamp pump head, easy to clean, whole machine washable, simple and economical maintenance, high purity
Donjoy DJ-SCLX Series centrifugal pump is upgraded from SKS in ss whole, including motor, not only optimize the internal structure, such as impeller design, dead angle treatment, mechanical seal is designed as pressure balance and completely in flushing area, but also optimize external sanitation of the pump, which makes internal absolute sanitarion and reduce external dead angel.

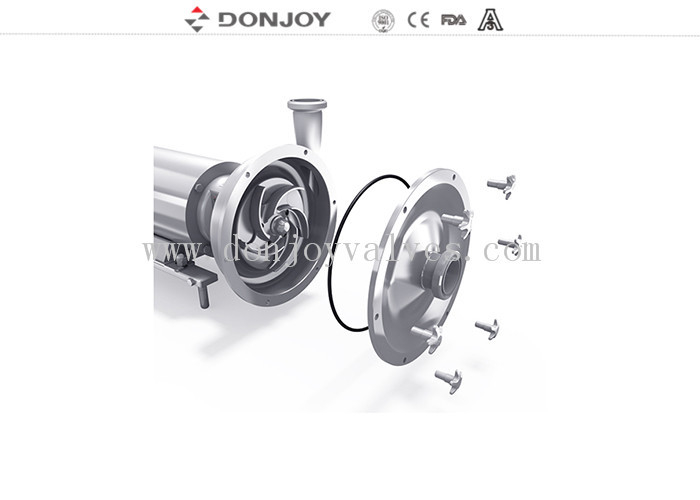

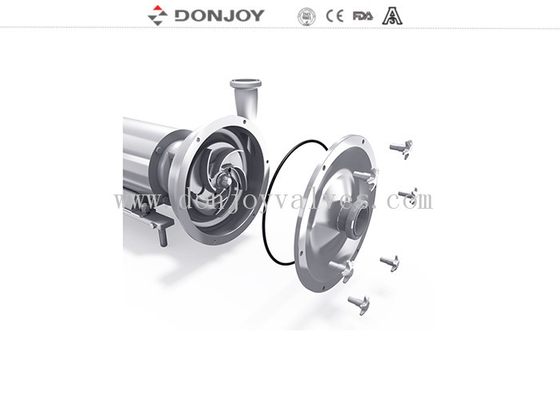

Since there is no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP.In addition, DJ-SCLX series pump, has kept the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 360° , Pump cover is connected by a clamp, which keeps high efficiency in the maintenanceof the pump and replacement of mechanical seal without special tool, and reduces the highly professional requirements to maintenance personnel. Therefore, the DJ-SCLX series centrifugal pump have achieved the goal of high efficiency, hygiene, high reliability and low cost, makeing it a high performance pump.
Specifications
|
Product Name: |
Food grade Beverage/beer /liquid transfer pump centrifugal pump with IP69 Motor |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
120 m3/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
70H(m) |
|
Max. Working Pressure: |
7 bar/99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard), C/SIC, TC/TC |
|
Sealing type: |
Flushed double mechanical seal/single mechanical seal(standard) |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw.... |
|
Voltage: |
110V, 220V, 380V,440V |
|
Motor: |
ABB/domestic/SIEMENS |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Application structure: |
SCLX |
|
Available connection: |
Tri - Clamp, Thread, Flange |
|
Available standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
| Impeller | Opening impeller |
| Transfer | Driven by rotary impeller |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5. Open Impeller, Close Impeller
Applications
1. This pump is a whole including the motor and pump are made of stainless steel, not only high clean exterior and interior design, also online high-pressure water rinse. IP67 up to IP69 rating
2.This pump have a high discharge,low noise, igh flow, no dead-ends. high-performance and other technical characteristics. Mother and manufacture high purity materials. Compliance with ASME BPE and EHEDG high Standards. Certified 3A-02-10,CE-MD/06/42/EC.
Technical Advantages
Maintenance disasembly and instllat can be completed without professional staff and special tools
Initial use of installation debugging, even if a short reverse rotaion will not be damaged.
Impleller and shaft are connected by kewya, impeller and mechanical seal rotating ring are connected by pin
Mechnical seal static ring and pump body are connected by special-shaped flange.
Compatible with single seal and double mechanical seal, only need to change mechanie seal.
SCLX pump selection Table
Drawing of SCLX Centrifugal pump
Connection of KLX Centrifugal pump
