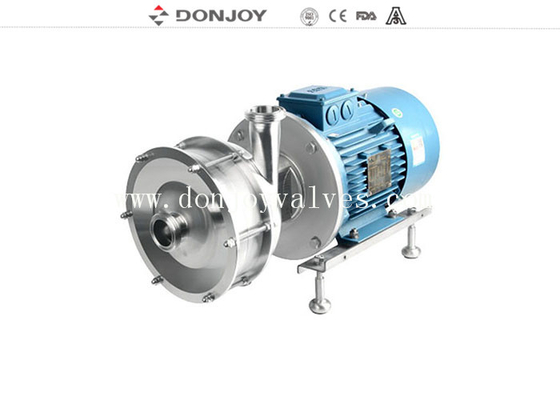

Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage

Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage

    • Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage
    • Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage
  • Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: DJ-DLX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 15-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 10 sets 20 working days
    Contact Now
    Detailed Product Description
    Item: Sanitary Centrifugal Pump Type: DJ
    Operation: Mechanical ABB Motor Mechanical: Single Seal
    Inlet: 2" Thread Outlet: 2" Thread
    Medium: Fluid Rotor: Opening Type
    High Light:

    Three Stage sanitary centrifigal Pump

    ,

    sanitary centrifigal Pump Single Seal

    ,

    2" Thread sanitary centrifigal Pump

    Three Stage sanitary centrifigal Pump with Famous motors brand for beverage



    Solution for high efficiency, low noise, high head, simple and economical maintenance, high purity



    Description

    The DLX Series centrifugal pump is a horizontal multi-stage open impeller centrifugal pump with high purity, high efficiency, max head can be up to 180M(18Bar). It is soft and hygienic to transport medium. Mainly used in food and beverage, dairy, brewery carbonation process, CIP feed, pharmaceutical industry, pure water pump(WFI Injection water), biotechnology production, infusion(nutrient solution, ethanol)filling station, personal care, soap, skin cream, lotion industry, purification treatment(CIP system),water technology, semiconductor production, metal surface treatment, etc..


    Options
    1. Mechanical seal: SIC / SICE/EPDM, TC/TC,EPDM
    2. Gasket: viton / NBR
    3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)
    4. Motor: 2900, 1450, 3600Min / 1,50HZ, 60HZ


    Specifications



    Product Name:

    multi-stage centrifugal pump DJ series High Purity Pumps Mechanical ABB Motor

    Valve Body Material:

    SS304 / SS316L / 1.4301 / 1.4404

    Seal Material:

    EPDM (Standard, FDA approval) FPM (Viton) and NBR

    Max. Flow:

    150 m³/h

    Max. Speed:

    3600 min-1

    Max. Head:

    180H(m)

    Max. Working Pressure:

    18bar

    Max. WorkingTemperature:

    120 °C

    Motor:

    ABB / domestic / SIEMENS

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    DLX

    Availably connection:

    Tri-Clamp, Thread, Flange

    Availably standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Low discharge option :

    Low discharge / diaphragm valve / ball valve / butterfly valve

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Rotors:

    Opening

    Level:

    Sanitary grade


     Applications

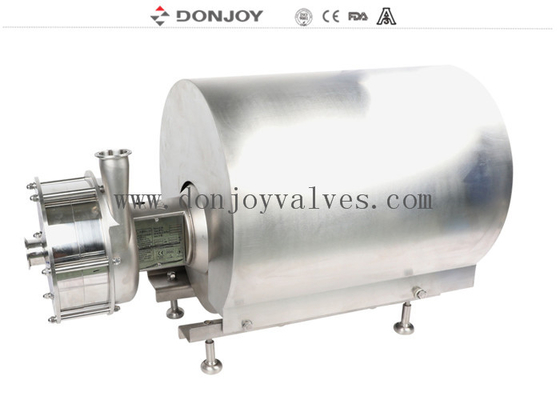

    1. This pump is manufactured in stianless steel and with a shrouded motor.
    2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing, pharmaceutical and fine chemical industries.



    Technical Advantages

    Maintenance disassembly and installation can be completed without professional staff and special tools.

    Initial use of installation debugging, even if a short revere rotation will not be damage.

    Impeller and shaft are connected by keyway, Impeller and mechanical seal rotating ring are connected by pin.Mechanical seal static ring and pump body are connected by special-shaped flange

    Compatible with single and double machine seal, only need to change machines seal.

    Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage 0



    Selection Table

    Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage 1

    Drawing

    Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage 2

    Three Stage Sanitary Centrifigal Pump With Famous Motors Brand For Beverage 3
    Packaging Details
    Plywood case or customerized. Or as per the request of customers.



    Delivery details
    Usually within 20 days after receiving T/T down payment.
