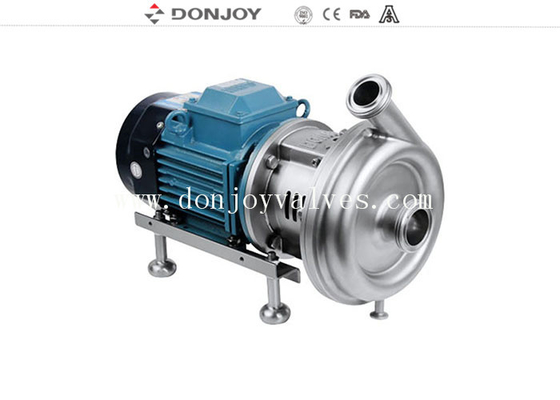

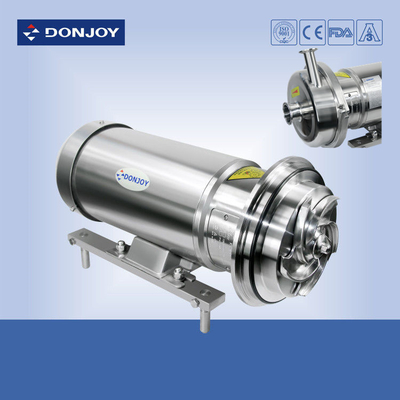

KS-30 sanitary high purity pump open impeller for beverage and comestic

KS-30 sanitary high purity pump open impeller for beverage and comestic

  • KS-30 sanitary high purity pump open impeller  for beverage and comestic
  • KS-30 sanitary high purity pump open impeller  for beverage and comestic
  • KS-30 sanitary high purity pump open impeller  for beverage and comestic
  • KS-30 sanitary high purity pump open impeller  for beverage and comestic
  • KS-30 sanitary high purity pump open impeller  for beverage and comestic
KS-30 sanitary high purity pump open impeller  for beverage and comestic
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: KS-30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product: Movable Centrifugal Pump Type: KS-30
Operation: ABB / Domestic Motor / SIEMENS Mechanical: Flush Mechanical Seal / Doulbe Seal
Inlet: 2" Thread Outlet: 1.5" Thread

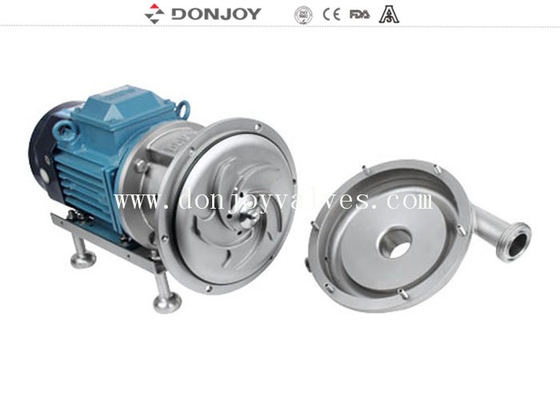

Rotor: Open Type Outside: With Cover
High Light:

lobe rotary pump

,

high pressure pumps

KS-30 sanitary pump open impeller for beverage and comestic

Description
Options

1.  Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM

2.  Gasket: viton / NBR

3.  Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)

4.  Motor: 2900, 1450, 3600Min / 1,50HZ, 60H



Specifications

Product Name:

Centrifugal pump of Model KS

Valve Body Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

150 m3/h

Max. Speed:

3600 min - 1

Max. Head:

70H (m)

Max. Working Pressure:

7 bar / 99 PSI

Max. Working
Temperature:

120 °C

Motor:

ABB/domestic/SIEMENS

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Available connection:

Tri-Clamp, Thread, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Low discharge option :

Low discharge / diaphragm valve / ball valve / butterfly valve

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy,food, beverage, pharmacy, cosmetic etc

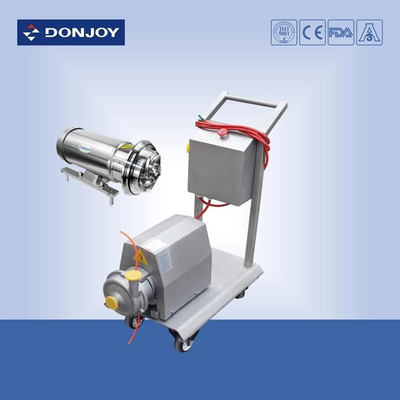

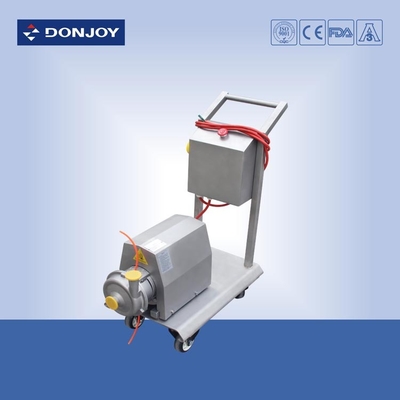

Device With trolley
Motor Be covered



Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
 2. Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


Packaging Details
 Plywood case or customerized. Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Installation
Please check the detailed installation data below.

KS-30 sanitary high purity pump open impeller  for beverage and comestic 0

KS-30 sanitary high purity pump open impeller  for beverage and comestic 1
