Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
S - KS - 30
Contact Us

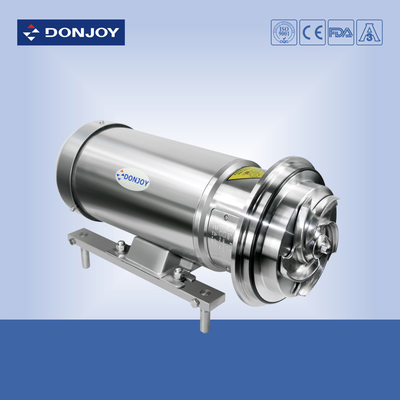

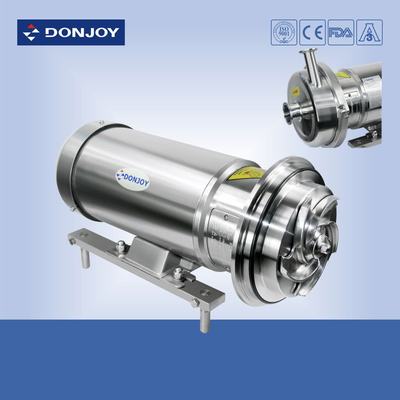

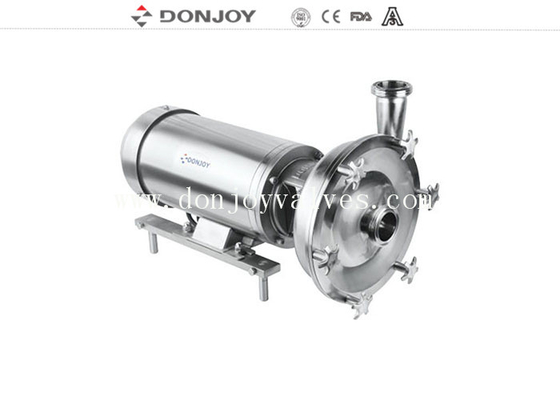

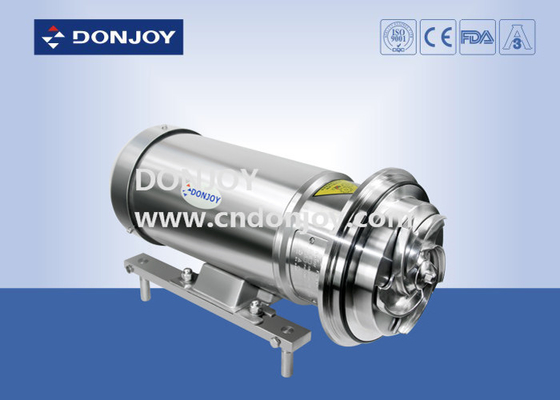

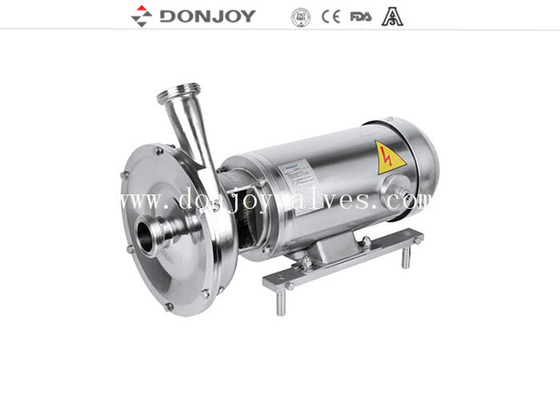

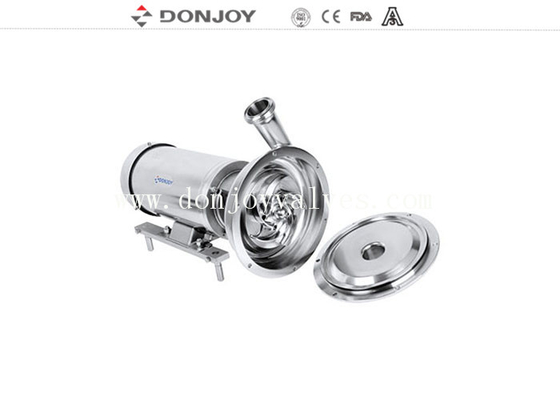

CLX-30, SS316L Stianless steel high purity centrifulgl pump for chemical producing
Specifications
|
Product Name: |
KS-30, SS316L Stianless steel high purity centrifulgl pump for chemical producing |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
150 m3/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
70H(m) |
|
Max. Working Pressure: |
7 bar/99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard), C/SIC, TC/TC |
|
Sealing type: |
Flushed double mechanical seal/single mechanical seal(standard) |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw |
|
Voltage: |
110V, 220V, 380V |
|
Motor: |
ABB/domestic/SIEMENS |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Application structure: |
KS/BS |
|
Available connection: |
Tri - Clamp, Thread, Flange |
|
Available standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
| Impeller | Opening impeller |
| Transfer | Driven by rotary impeller |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5. Open Impeller, Close Impeller
Applications
1. This pump is a whole including the motor and pump are made of stainless steel, not only high clean exterior and interior design, also online high-pressure water rinse. IP67 up to IP69 rating
2.This pump have a high discharge,low noise, igh flow, no dead-ends. high-performance and other technical characteristics. Mother and manufacture high purity materials. Compliance with ASME BPE and EHEDG high Standards. Certified 3A-02-10,CE-MD/06/42/EC.
Selection Table
Drawing
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
